Heater and Blower and Air Conditioning Control Module Replacement

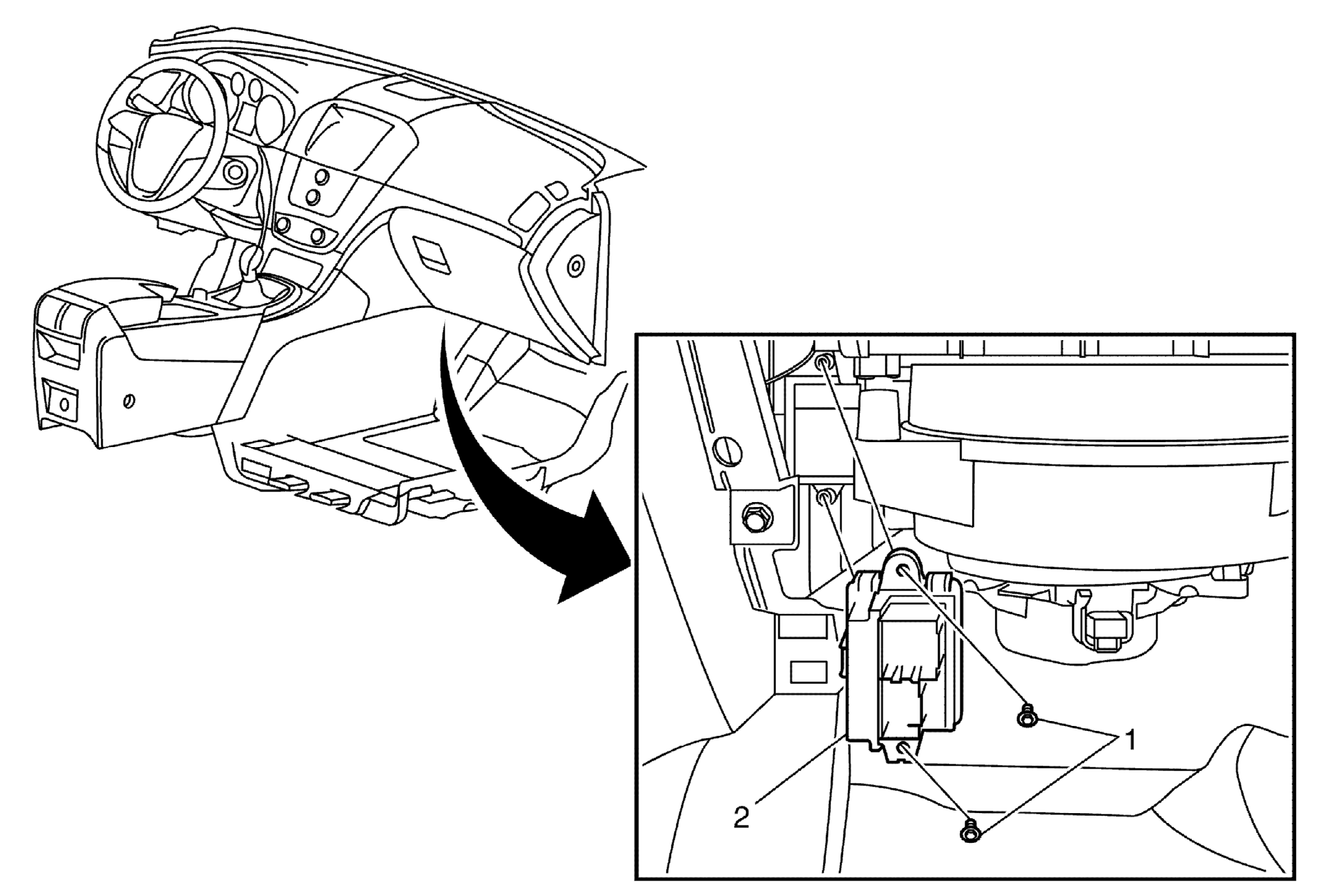

Fig 1: Heater And Blower & Air Conditioning Control Module With Fasteners
GM2020214Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
  2. Remove the floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side .
  3. Disconnect the heater and blower and air conditioning control module electrical connectors.
1 Heater and Blower and Air Conditioning Control Module Fastener (Qty:2)
2 Heater and Blower and Air Conditioning Control Module
