Inside Air Valve Actuator Replacement

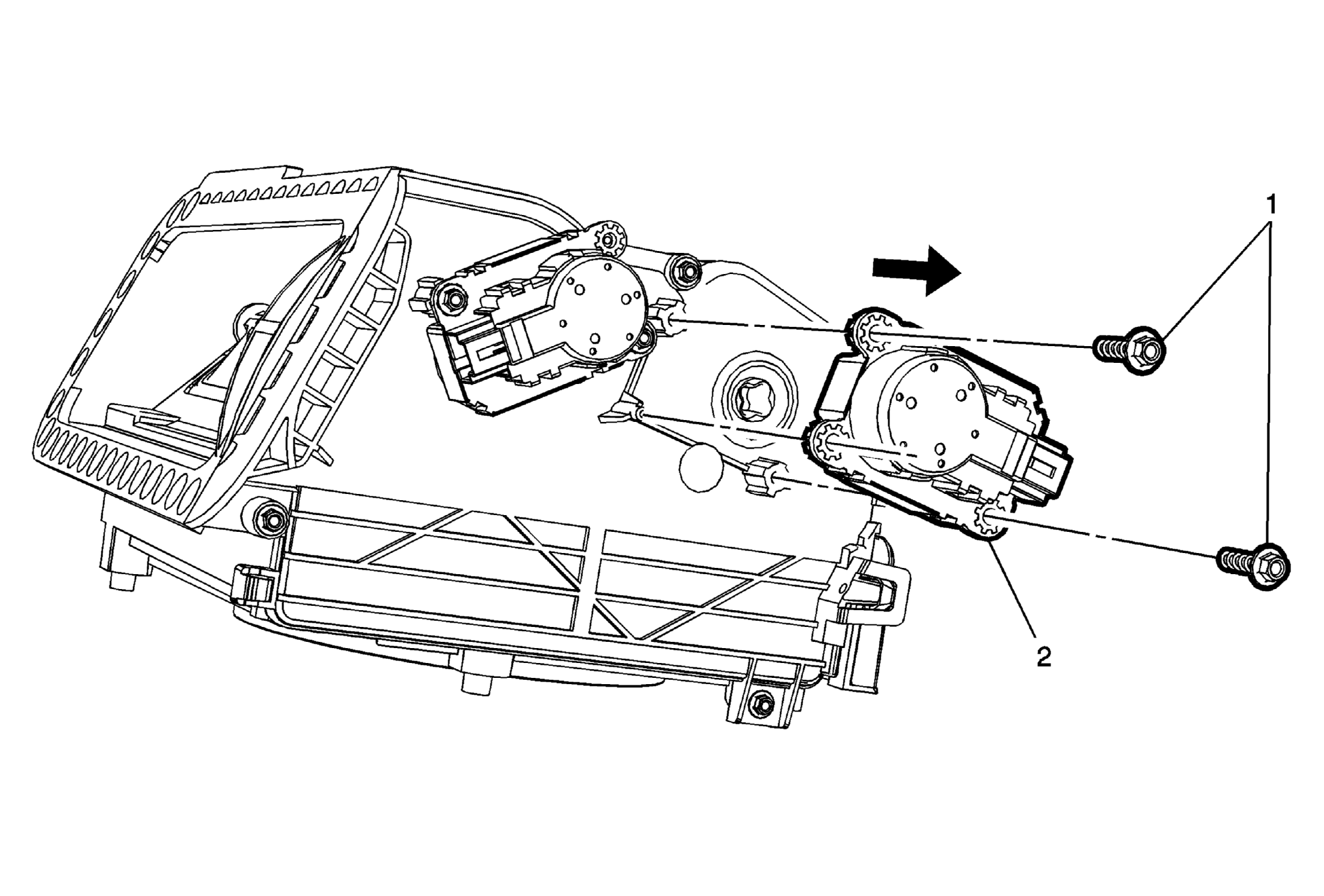

Fig 1: Inside Air Valve Actuator

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) . Remove air inlet housing assembly. Refer to Air Inlet Housing Replacement .
1	Inside Air Valve Actuator Fastener (Qty:2)
2	Inside Air Valve Actuator Procedure Disconnect the inside air valve actuator electrical connector. NOTE: The actuator is self-calibrating when connecting the battery

Call out

Component Name

Preliminary Procedures

Inside Air Valve Actuator Fastener (Qty:2)

Inside Air Valve Actuator
Procedure
Disconnect the inside air valve actuator electrical connector.

NOTE:

The actuator is self-calibrating when connecting the battery
