Temperature Valve Actuator Replacement - Right Side

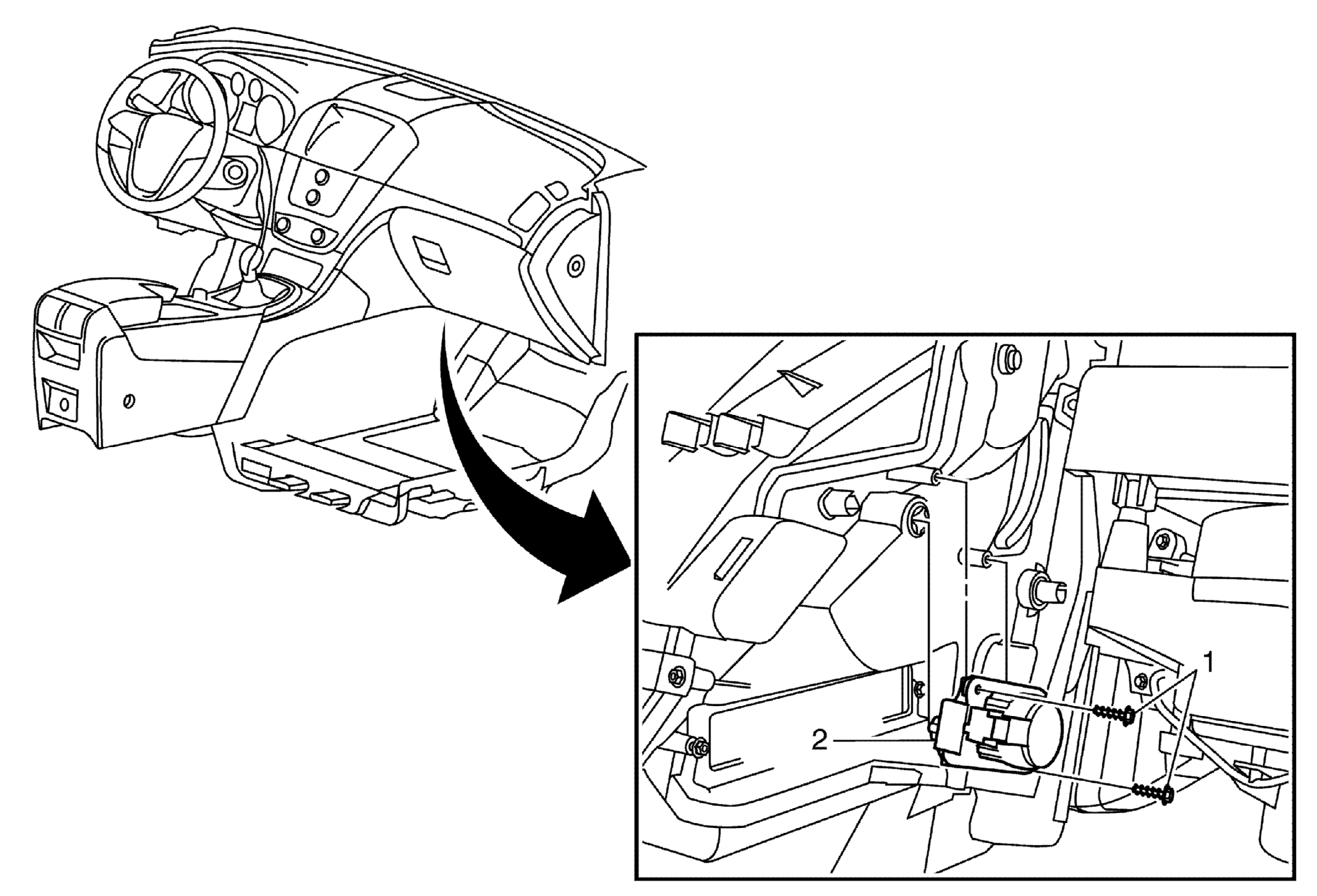

Fig 1: Temperature Valve Actuator - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) . Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the floor air outlet duct - right side. Refer to Floor Air Outlet Duct Replacement - Right Side .
1	Temperature Valve Actuator Fastener (Qty:2) Procedure Disconnect the temperature actuator electrical connector.
2	Temperature Valve Actuator TIP: Actuator is self-calibrating when connecting the battery.

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Without Start/Stop) .
Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the floor air outlet duct - right side. Refer to Floor Air Outlet Duct Replacement - Right Side .

Temperature Valve Actuator Fastener (Qty:2)
Procedure
Disconnect the temperature actuator electrical connector.

Temperature Valve Actuator
TIP: Actuator is self-calibrating when connecting the battery.
