Air Conditioning Module Wiring Harness Replacement

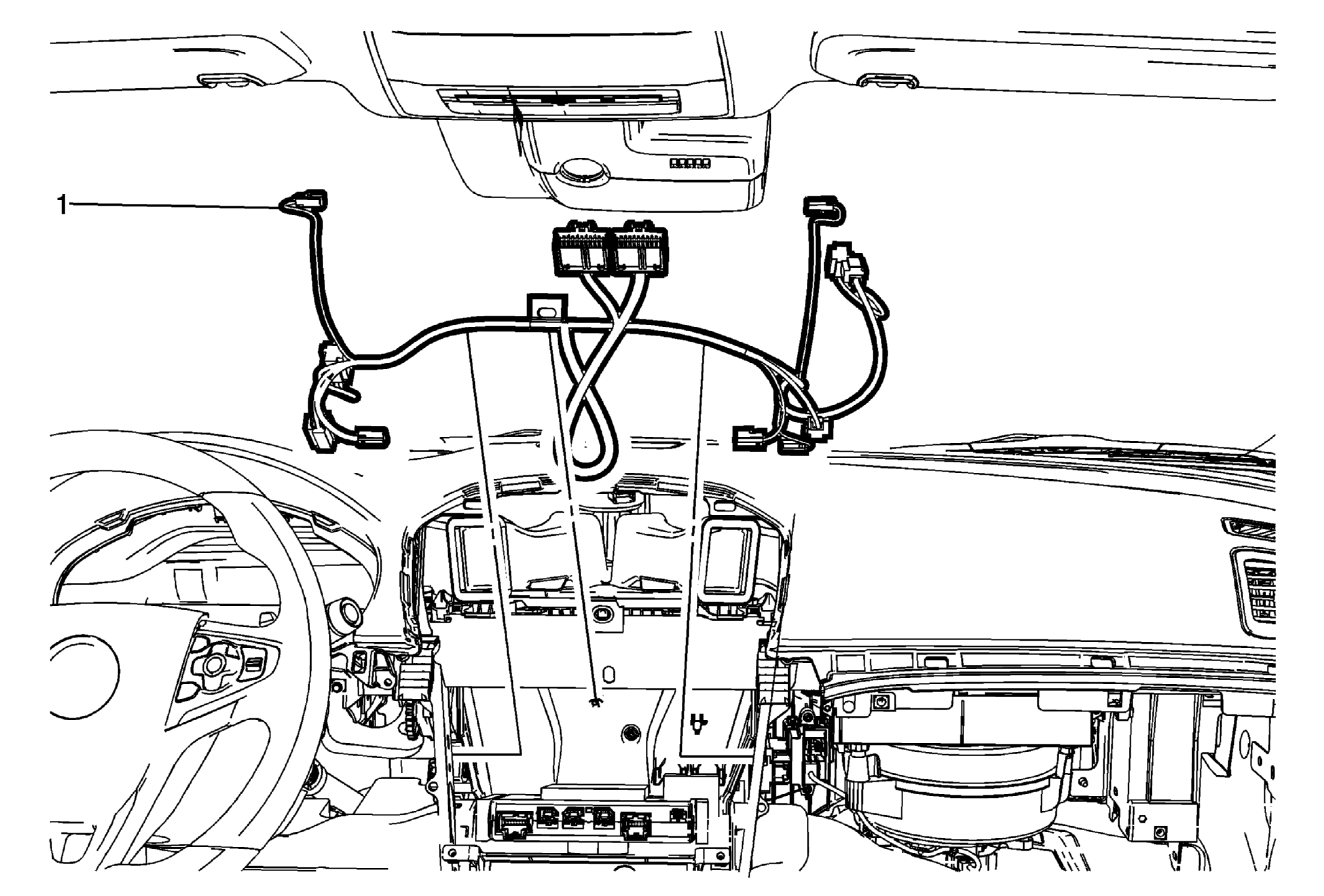

Fig 1: Air Conditioning Module Wiring Harness
GM3425015Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the heater and air conditioning remote control. Refer to Heater and Air Conditioning Remote Control Replacement .
  2. Remove the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .
  3. Remove the instrument panel lower extension side trim panel. Refer to Instrument Panel Lower Extension Side Trim Panel Replacement .
  4. Remove the instrument panel lower trim panel - left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
  5. Remove the instrument cluster. Refer to Instrument Cluster Replacement .
1 Air Conditioning Module Wiring Harness

Procedures

  1. Disconnect the electrical connections from the actuators and the temperature sensors.
  2. Maneuver the air conditioning module wiring harness out from behind the drive side of instrument panel assembly.
