Heater and Air Conditioning Remote Control Replacement

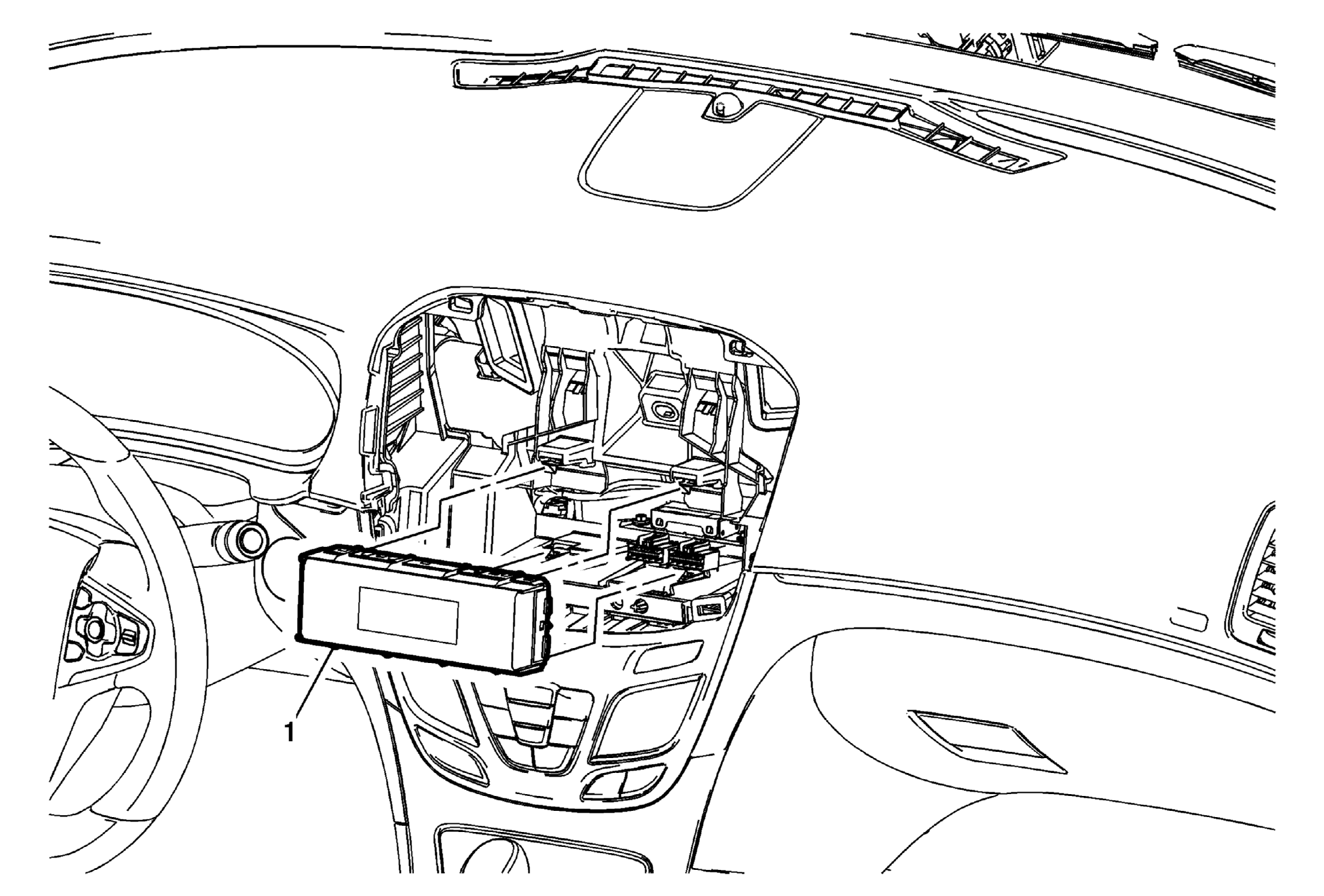

Fig 1: Heater and Air Conditioning Remote Control
GM3422050Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel upper center trim panel. Refer to Instrument Panel Upper Center Trim Panel Replacement .
1 Heater And Air Conditioning Remote Control Module

Procedures

  1. Disconnect the heater and air conditioning remote control module connectors.
  2. Perform the HVAC system control module programming and setup procedure.

    Refer to HVAC Control Module Programming and Setup .

  3. Perform the actuator re-calibration procedure.

    Refer to Actuator Recalibration (C67) .
