Instrument Panel Lower Trim Panel Replacement - Left Side

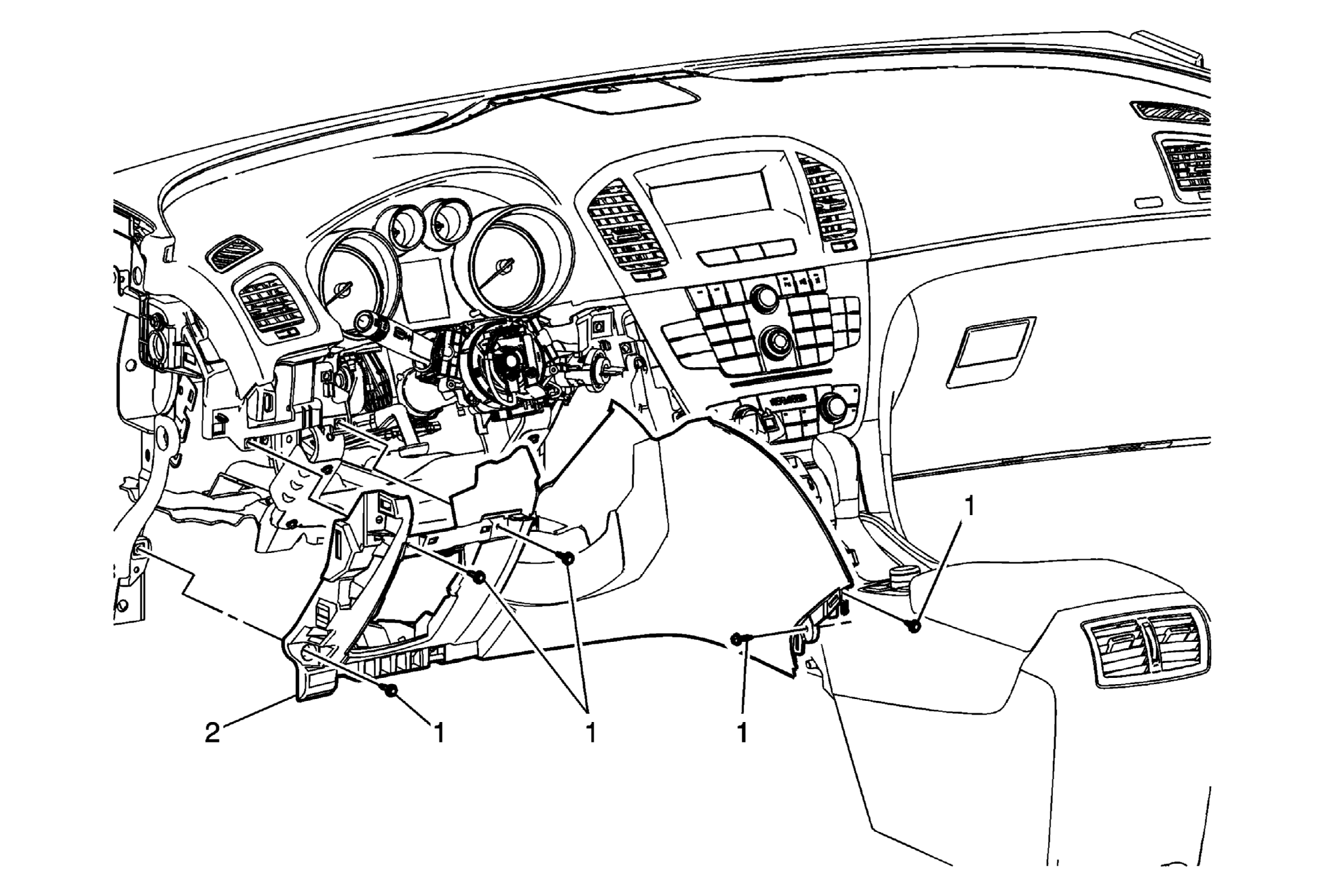

Fig 1: Instrument Panel Lower Trim Panel - Left Side
GM2351285Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side .
  2. Remove the headlamp switch. Refer to Headlamp Switch Molding Replacement .
  3. Remove the instrument panel outer compartment. Refer to Instrument Panel Outer Compartment Replacement .
  4. Remove the driver side instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement (Passenger Side) .
  5. Remove the steering column upper trim panel. Refer to Steering Column Trim Cover Replacement .
  6. Remove the front floor console left extension panel. Refer to Front Floor Console Extension Panel Replacement .
1 Instrument Panel Lower Trim Panel Fastener (Qty:5)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Lower Trim Panel Assembly

Procedures

  1. Disconnect the data link connector.
  2. Disconnect the electrical connections, if applicable.
  3. When replacing the instrument panel lower trim panel, transfer all necessary components.
