Instrument Panel Lower Center Trim Panel Replacement

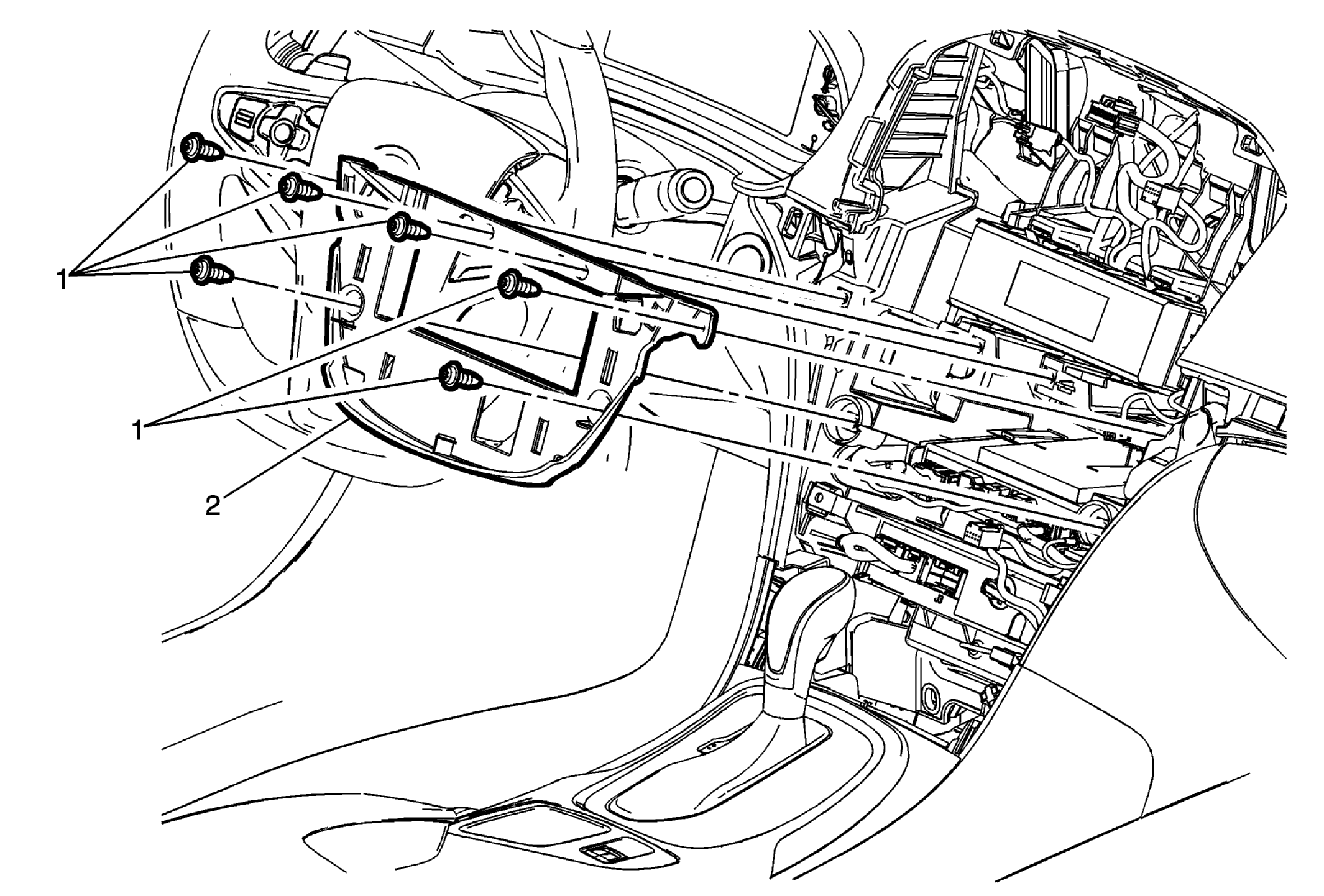

Fig 1: Instrument Panel Lower Center Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
1	Instrument Panel Lower Center Trim Panel Fastener (Qty:6) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Lower Center Trim Panel
