Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Drive Belt
    GM1809412Courtesy of GENERAL MOTORS COMPANY
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the oil level indicator tube. Refer to Oil Level Indicator Tube Replacement .
    3. NOTE:

    The support fixture bar must be installed to provide enough access to remove and properly tighten the oil pan bolts.

  3. Install the engine support fixture. Refer to Engine Support Fixture .
    4. Fig 2: Engine Mount
    GM2582518Courtesy of GENERAL MOTORS COMPANY
  4. Remove engine mount (4). Refer to Engine Mount Replacement .
  5. Using the engine support fixture, raise the engine approximately 76 mm (3 in).
  6. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

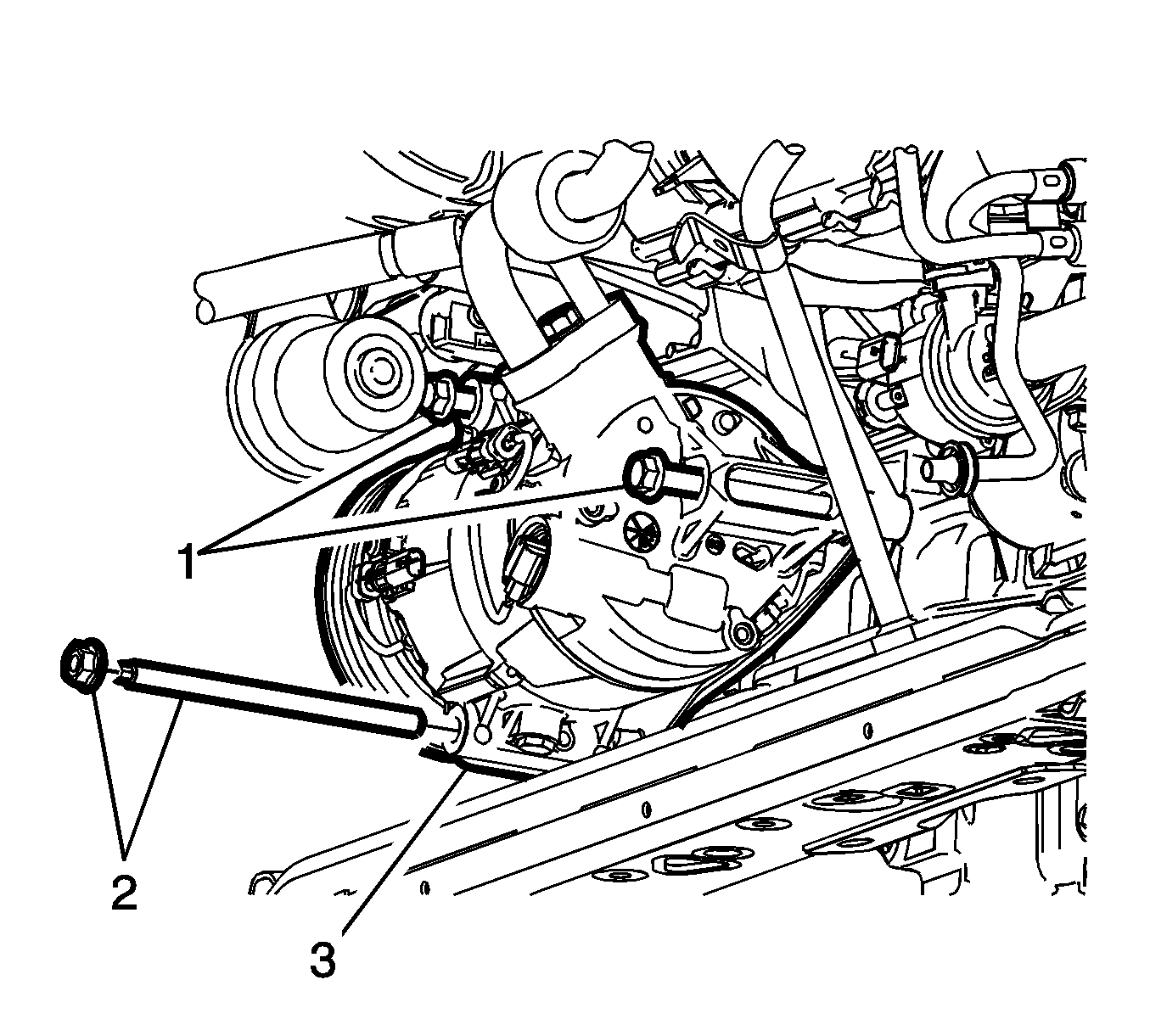

    7. Fig 3: Air Conditioning (A/C) Compressor Bolts
    GM2582477Courtesy of GENERAL MOTORS COMPANY
  7. Loosen the upper air conditioning (A/C) compressor bolts (1).
  8. Remove the lower A/C compressor nut and stud (2).

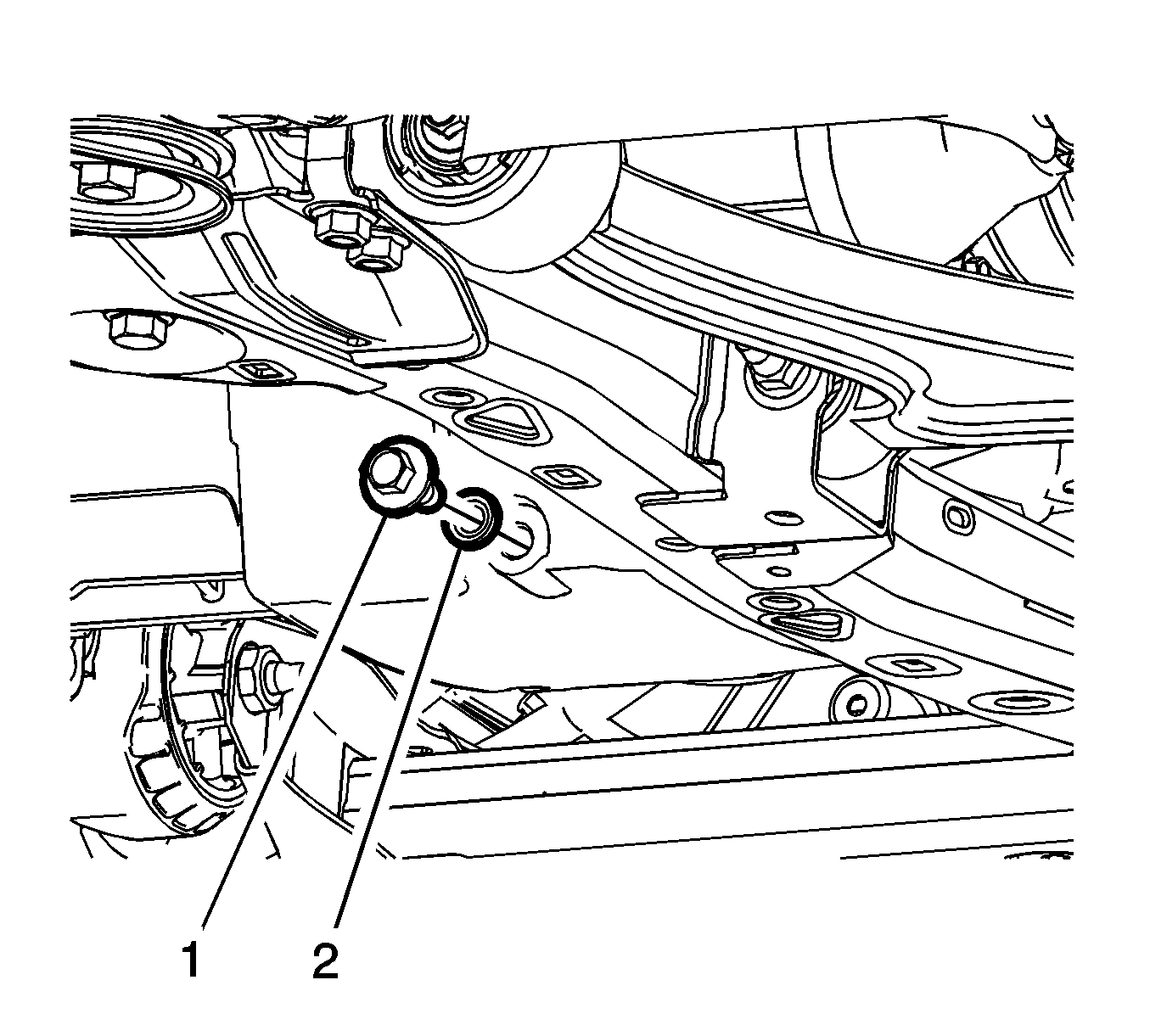

    9. Fig 4: Oil Pan Drain Plug
    GM2582324Courtesy of GENERAL MOTORS COMPANY
  9. Place a suitable drain pan under the oil pan drain plug (1).
  10. Remove the oil pan drain plug.
  11. Drain the engine oil.
  12. Reinstall the oil pan drain plug until snug.
    13. Fig 5: Bolts And Secondary Air Injection Pump
    GM2582513Courtesy of GENERAL MOTORS COMPANY
  13. Remove the bolts (1) retaining the secondary air injection pump (2) to the oil pan.
  14. Tie the secondary air injection pump out of the way of the oil pan.
    15. Fig 6: Identifying Oil Pan Bolts
    GM1578309Courtesy of GENERAL MOTORS COMPANY
  15. Remove the 4 oil pan to transaxle bolts.
  16. Remove the oil pan bolts.
    17. Fig 7: Identifying Oil Pan
    GM1578310Courtesy of GENERAL MOTORS COMPANY
  17. Remove the oil pan
  18. Remove any old oil pan sealant (1).
