Drive Belt Replacement (LEA)

WARNING: This page is about a different variant/trim than selected.

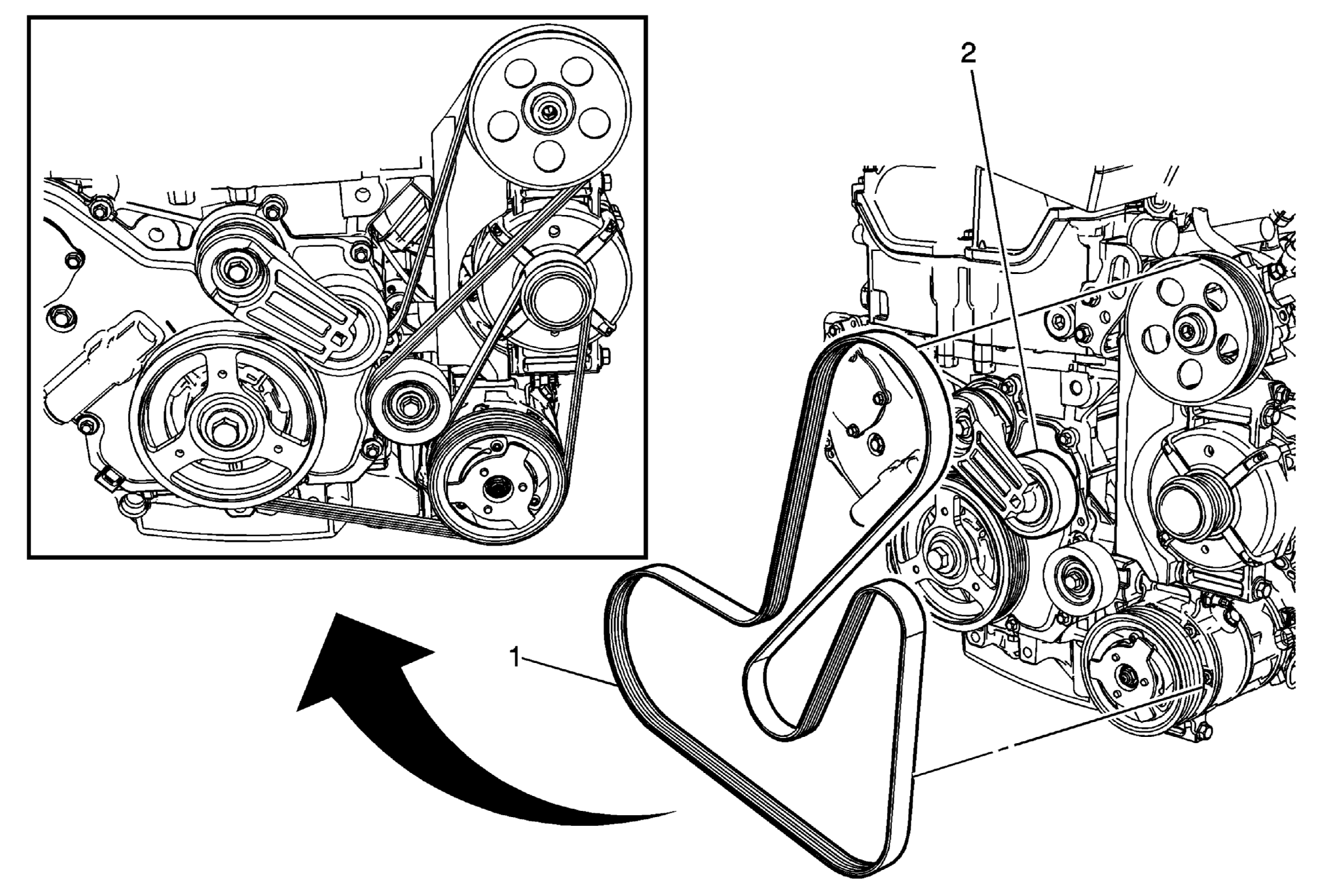

Fig 1: Drive Belt Routing (LEA)
GM2265163Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the Engine Mount. Refer to Engine Mount Replacement
1 Drive Belt

Procedure

  1. Use the proper tool to rotate the drive belt tensioner.
  2. Remove the drive belt from the pulleys and tensioner.
2 Drive Belt Tensioner

Procedure

  1. Clean and inspect the drive belt surfaces of all the pulleys.
  2. Inspect the drive belt for correct alignment.
