Oil Level Indicator Tube Replacement

WARNING: This page is about a different variant/trim than selected.

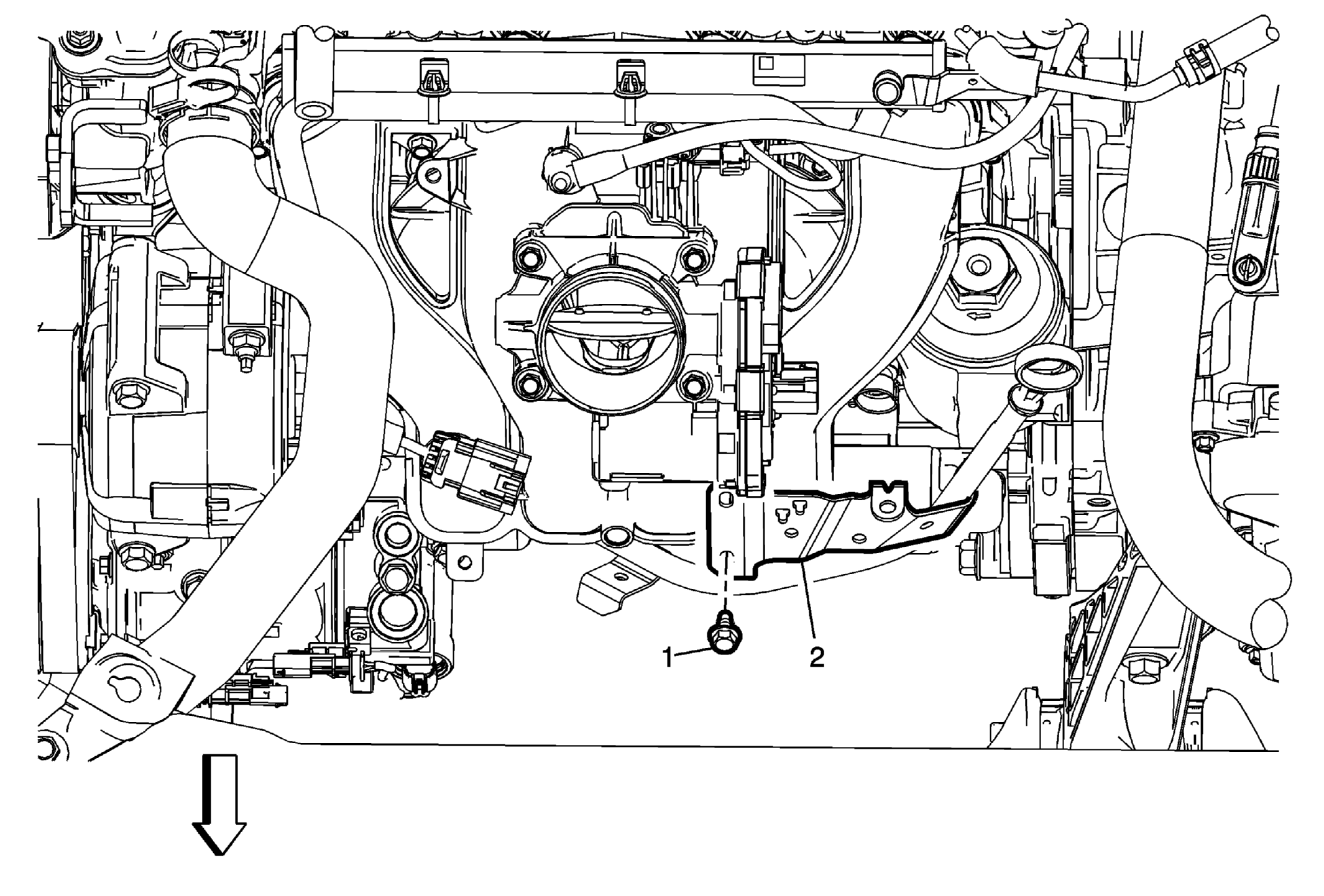

Fig 1: Oil Level Indicator Tube & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Oil Level Indicator Tube Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Oil Level Indicator Tube Procedure Transfer over the oil level indicator. Install NEW oil level indicator tube O-ring seals. Disconnect electrical connector

Callout

Component Name

Preliminary Procedure
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

Oil Level Indicator Tube Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Oil Level Indicator Tube

Procedure
