Engine Mount Replacement

WARNING: This page is about a different variant/trim than selected.

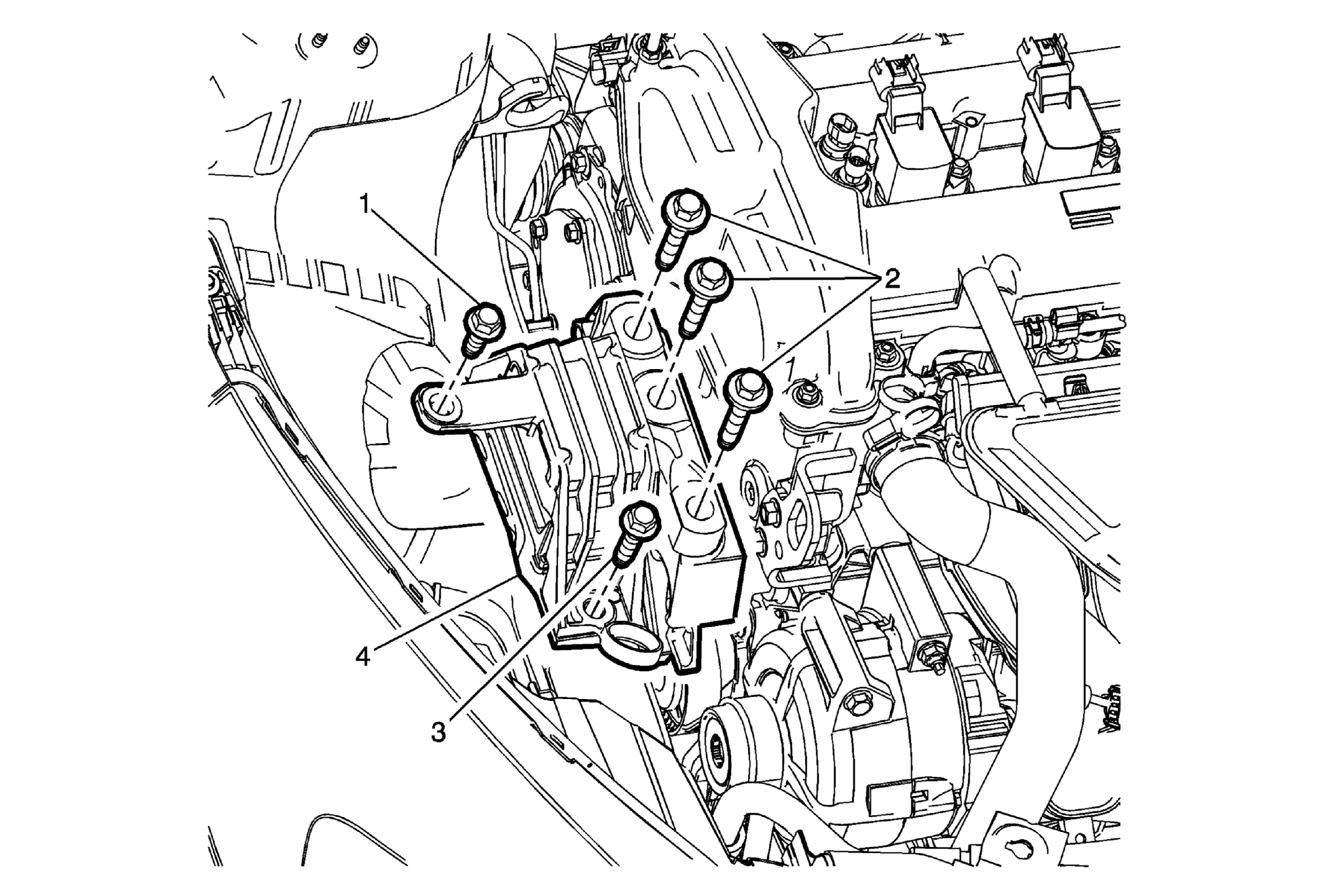

Fig 1: Engine Mount And Engine Mount Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Install engine support fixture. Refer to Engine Support Fixture . Prior to removing the mount, mark mount to bracket, mount to body interfaces and fasteners to mount interfaces using a marker for correct positioning during installation.
1	Engine Mount Fastener CAUTION: Refer to Fastener Caution . Tighten 62 N.m (46 lb ft)
2	Engine Mount Fastener (Qty:3) Tighten 62 N.m (46 lb ft)
3	Engine Mount Fastener (Qty:2) Tighten 62 N.m (46 lb ft)
4	Engine Mount Procedure Transfer components as necessary.
