Engine Support Fixture

Special Tools

• EN-28467-B  Universal Engine Support Fixture
• EN-28467-500B  Engine Support Fixture
• EN-43405-10  Engine Support Fixture Adaptor

For equivalent regional tools, refer to Special Tools .

1. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Fig 1: Engine Support Fixture Adapters
Courtesy of GENERAL MOTORS COMPANY

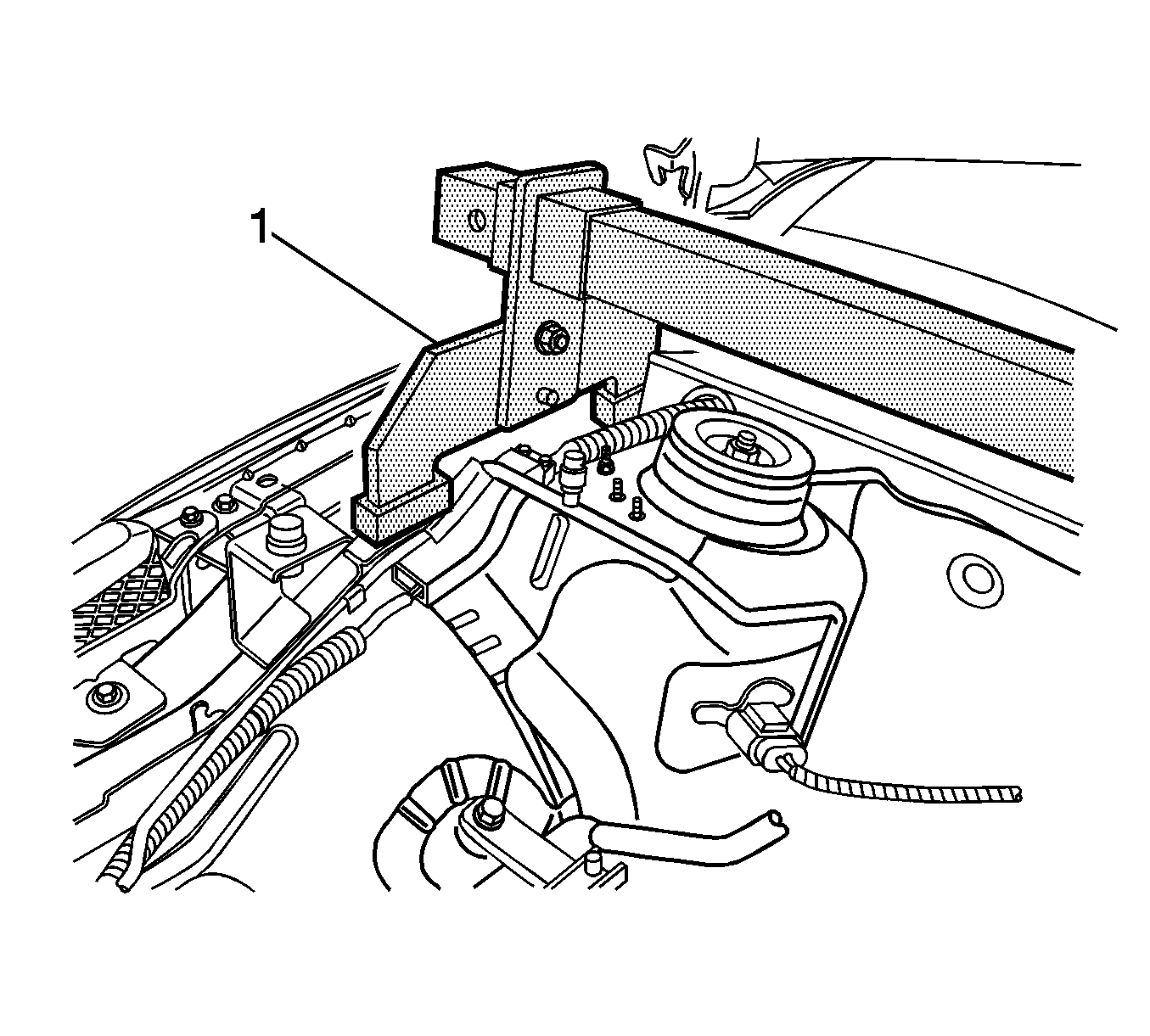

2. Assemble the EN-28467-B  universal engine support fixture to the EN-43405-1  engine support feet (passenger side) and EN-43405-2  engine support feet (drivers side) (1) and place across the engine compartment.
Fig 2: View Of Engine Support Fixture
Courtesy of GENERAL MOTORS COMPANY

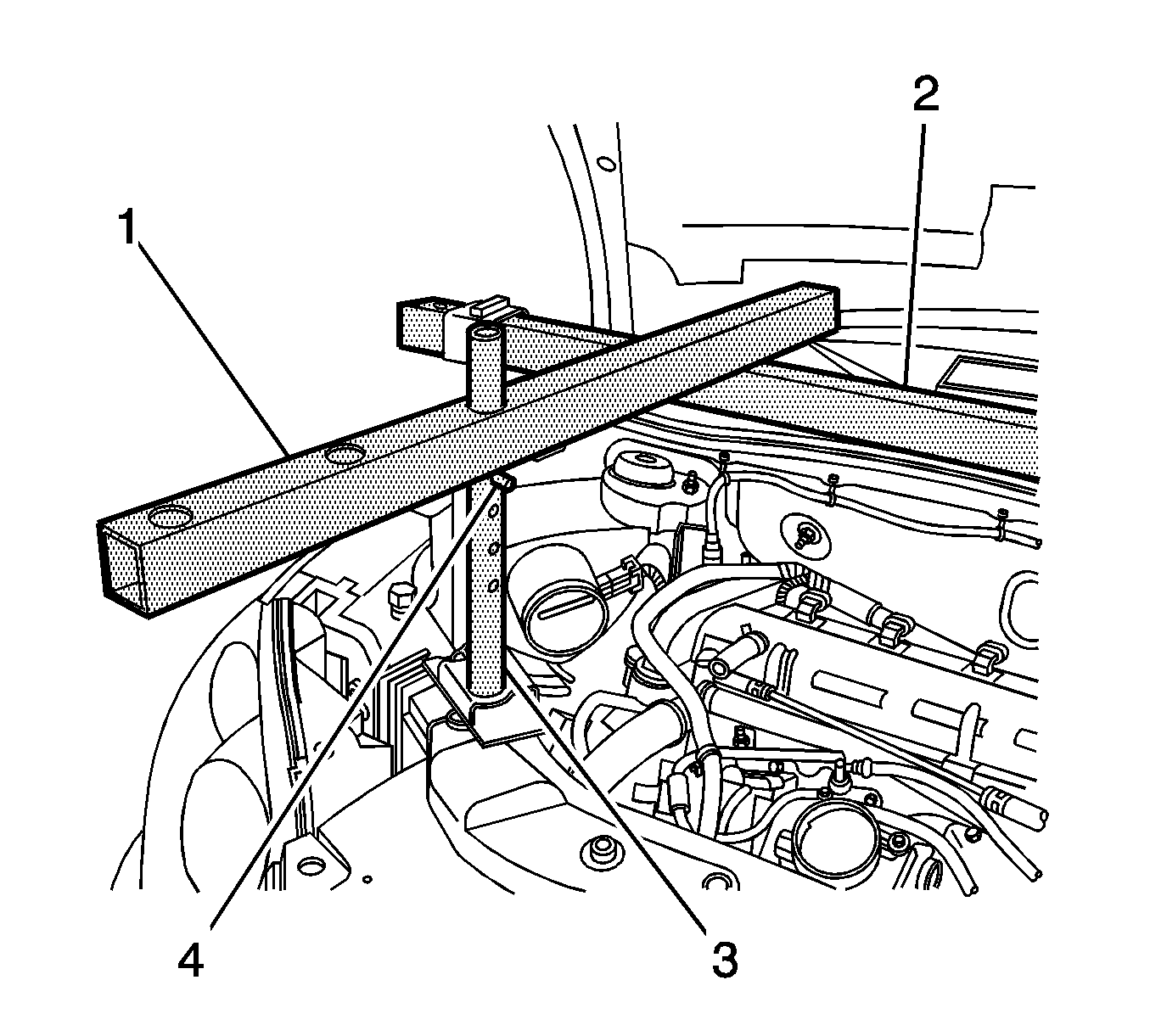

3. From the EN-28467-500B  universal engine support fixture , install the radiator shelf tube J-28467-2A (1) on top of the strut tower tube J-28467-3 (2) above the engine front (right back) lift hook bracket.
4. Install the round tube of the front support assembly J-28467-4A (3) through the large hole in the radiator shelf tube J-28467-2A.
5. Locate the J-28467-4A front support assembly to the upper tie bar.
6. Install the J-28467-9 7/16 inch x 2.0 inch quick-release pin (4) through the top hole in the J-28467-4A front support assembly.
Fig 3: View Of Engine Support Fixture & Cross Bracket
Courtesy of GENERAL MOTORS COMPANY

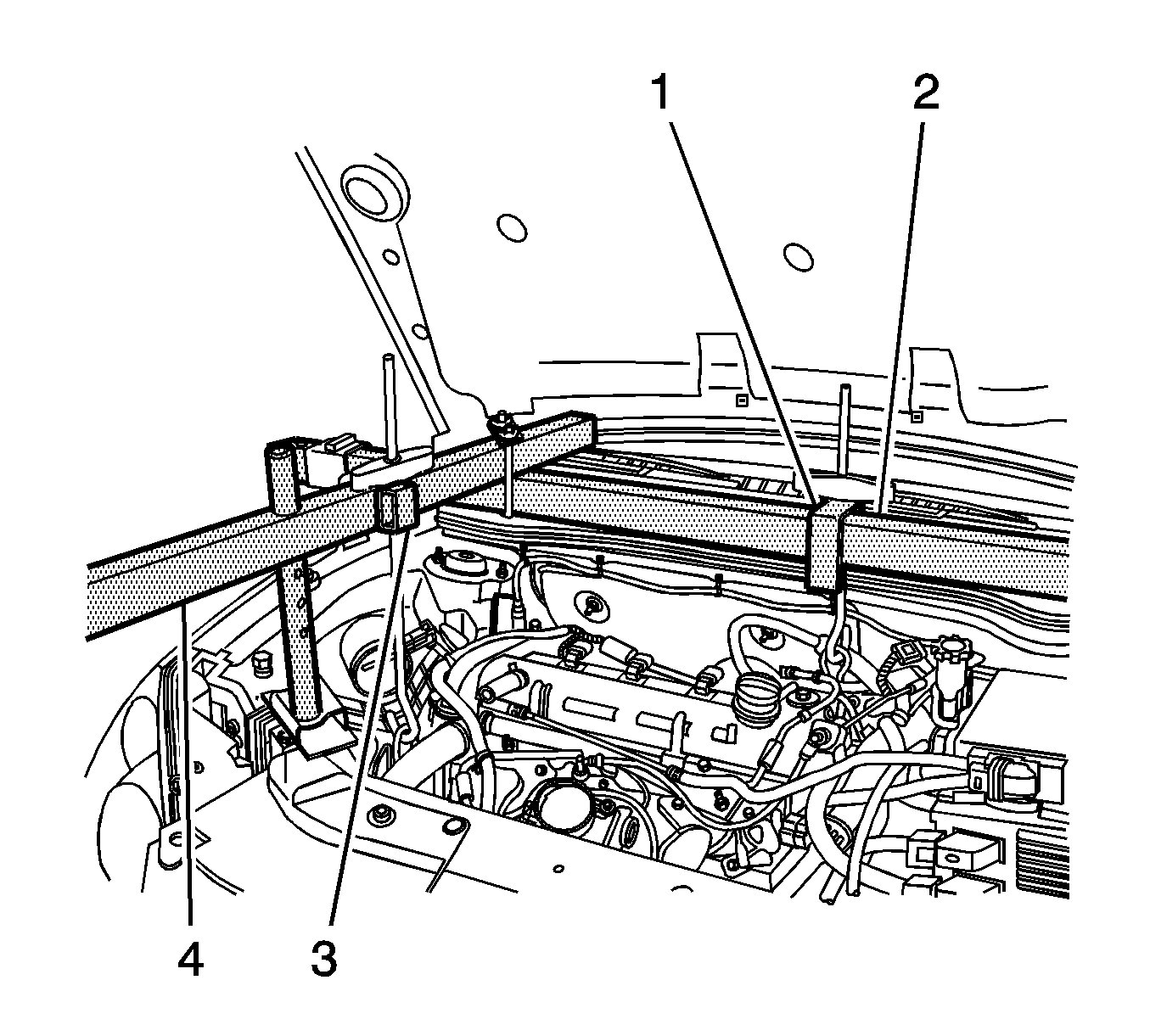

7. Install the J-28467-1A cross bracket assembly (1).
8. Hand tighten the J-28467-1A cross bracket wing nuts (2).
Fig 4: View Of Lift Hook Assembly
Courtesy of GENERAL MOTORS COMPANY
9. Install the J-28467-7A bolt hook through the J-28467-6A bracket.
10. Install the J-28467-34 lift hook wing nut and washer to the J-28467-7A lift hook.
11. Repeat the previous 2 steps in order to assemble 2 lift hooks and brackets.
Fig 5: Identifying Engine Support Fixture & Cross Bracket
Courtesy of GENERAL MOTORS COMPANY

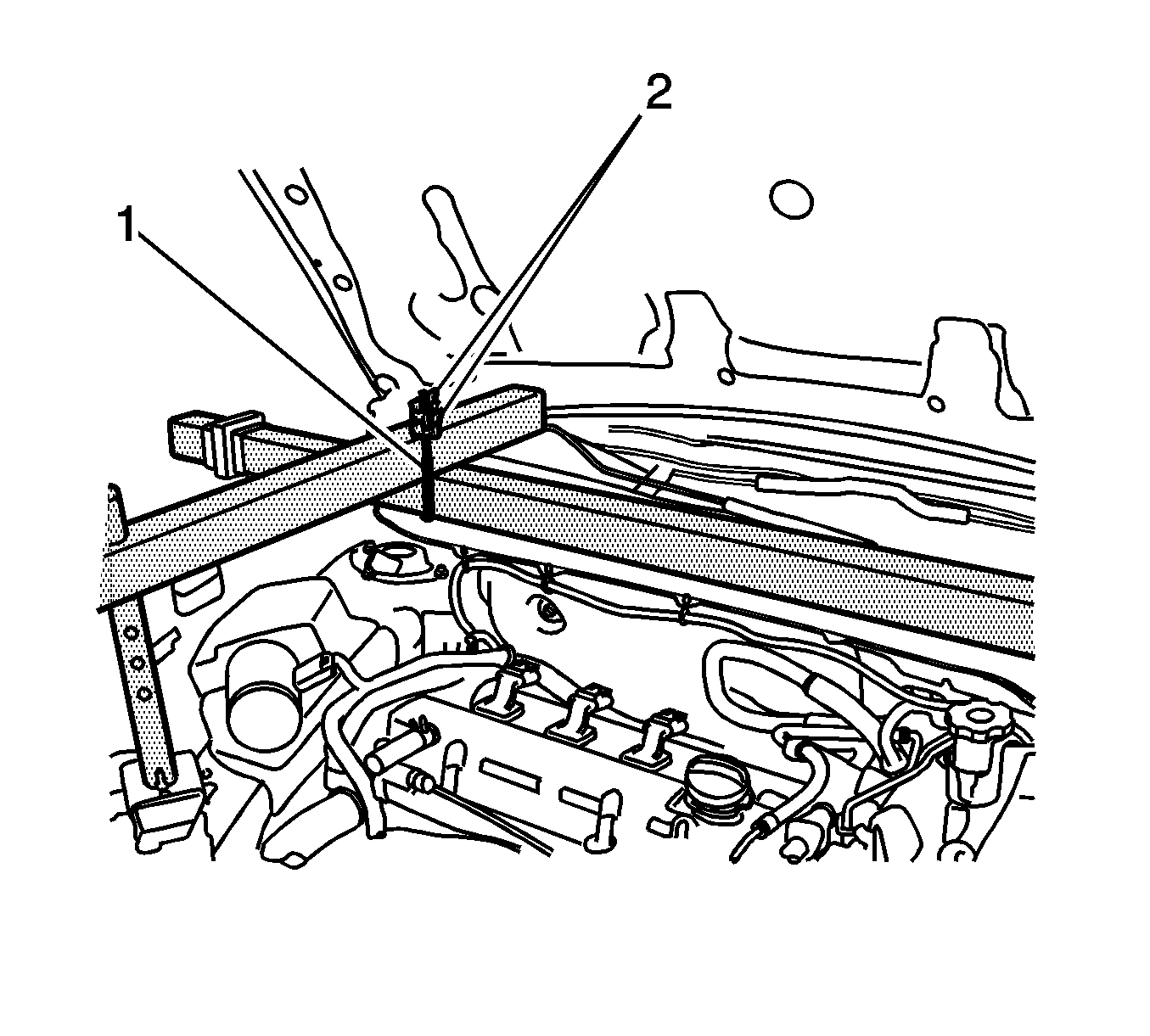

12. Install one of the lift hook and bracket assemblies (1) to the engine support fixture long bar (2).
13. Install the other lift hook and bracket assembly (3) to the J-28467-2A radiator shelf tube (4) above the engine front lift bracket.
Fig 6: Inserting Lift Hook Through Engine Rear Lift Bracket
Courtesy of GENERAL MOTORS COMPANY

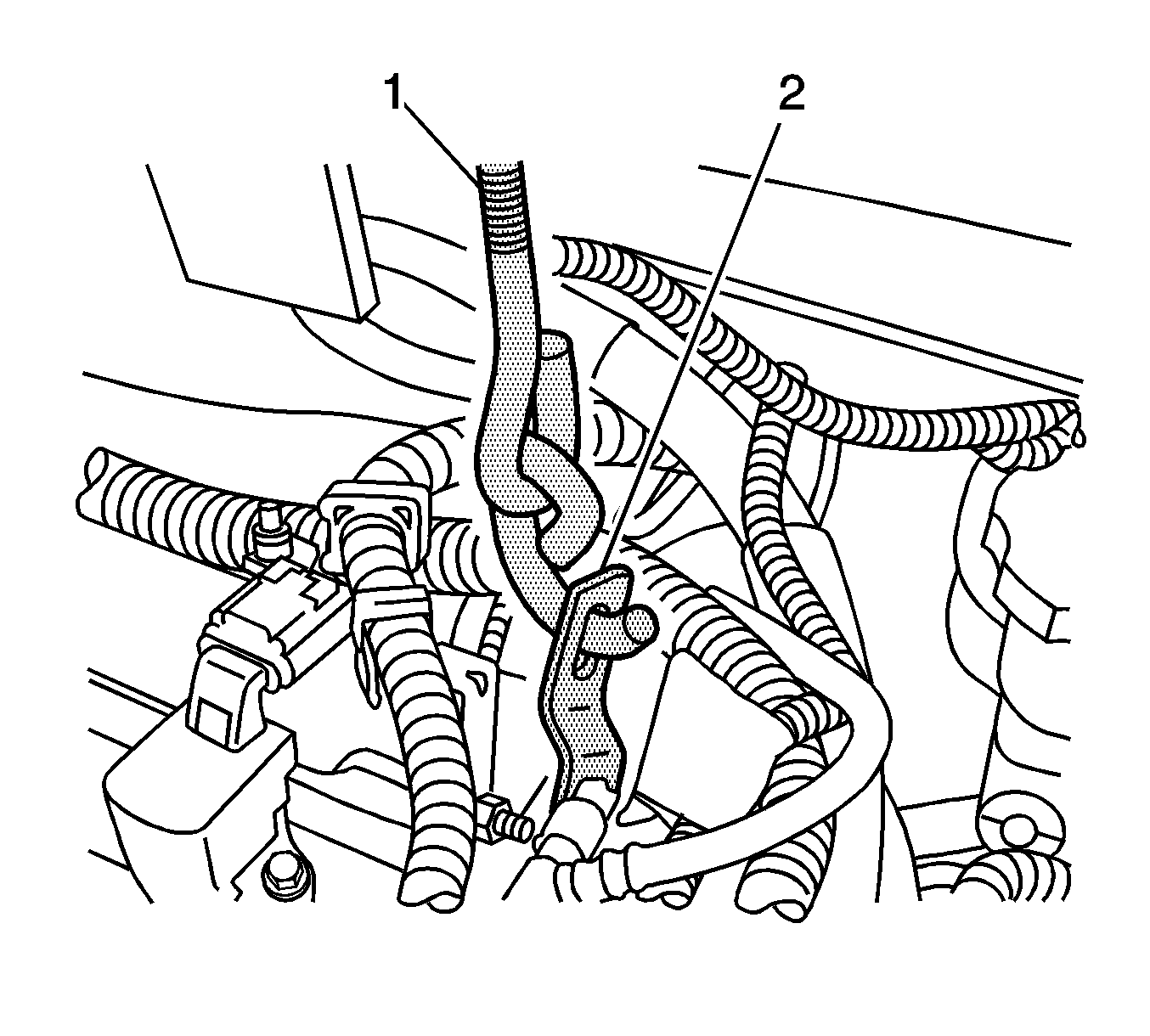

14. Install the lift hook J-28467-7A through the engine rear lift bracket (2).
Fig 7: Inserting Lift Hook Through Engine Front Lift Bracket
Courtesy of GENERAL MOTORS COMPANY

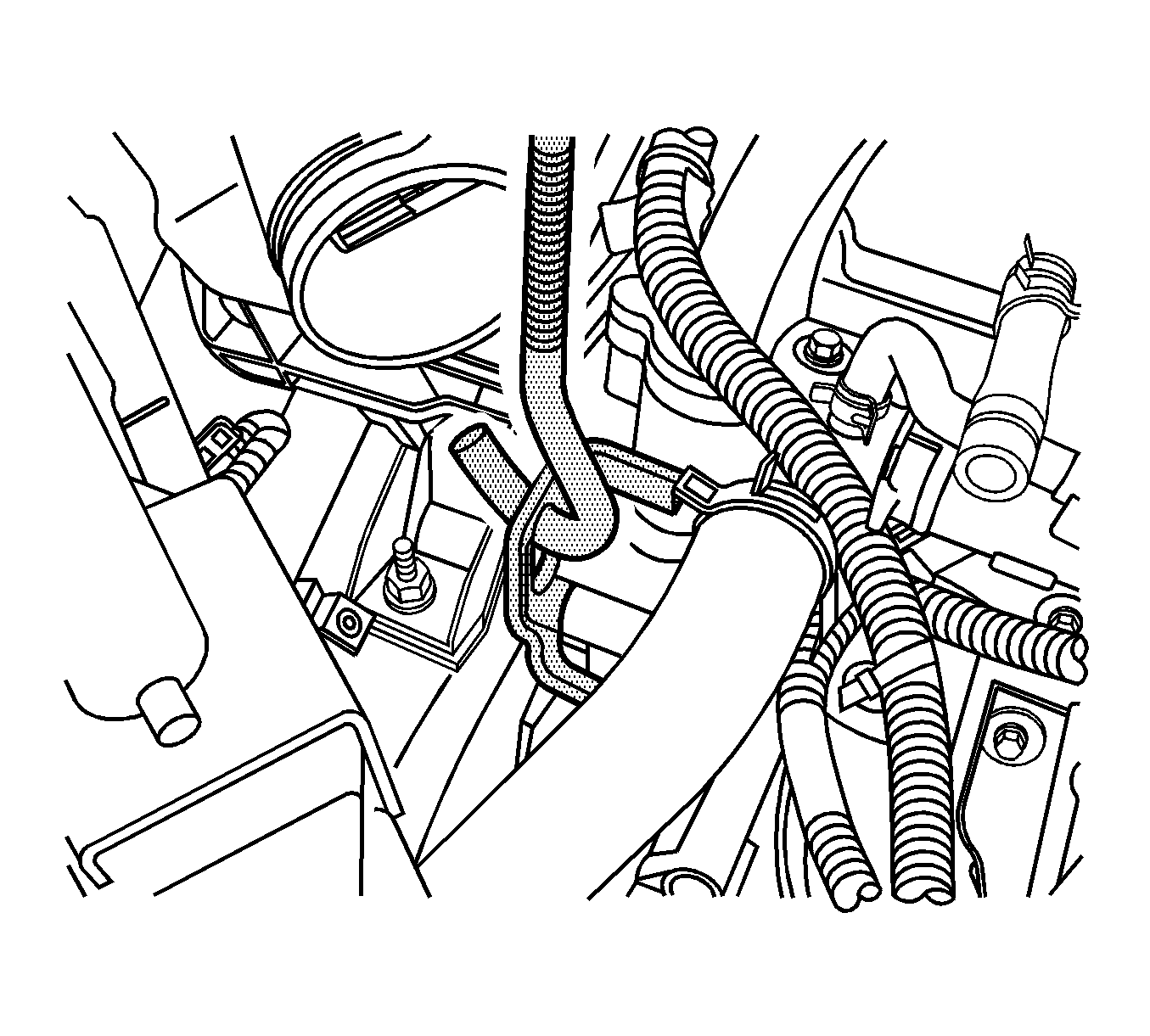

15. Install the lift hook J-28467-7A through the engine front lift bracket.
16. Hand tighten the lift hook wing nuts J-28467-34 in order to remove all slack from the engine support fixture assembly.
