Installation Procedure

  1. Carefully lower the vehicle until contacts the frame assembly and is correctly positioned within the spray painted areas.

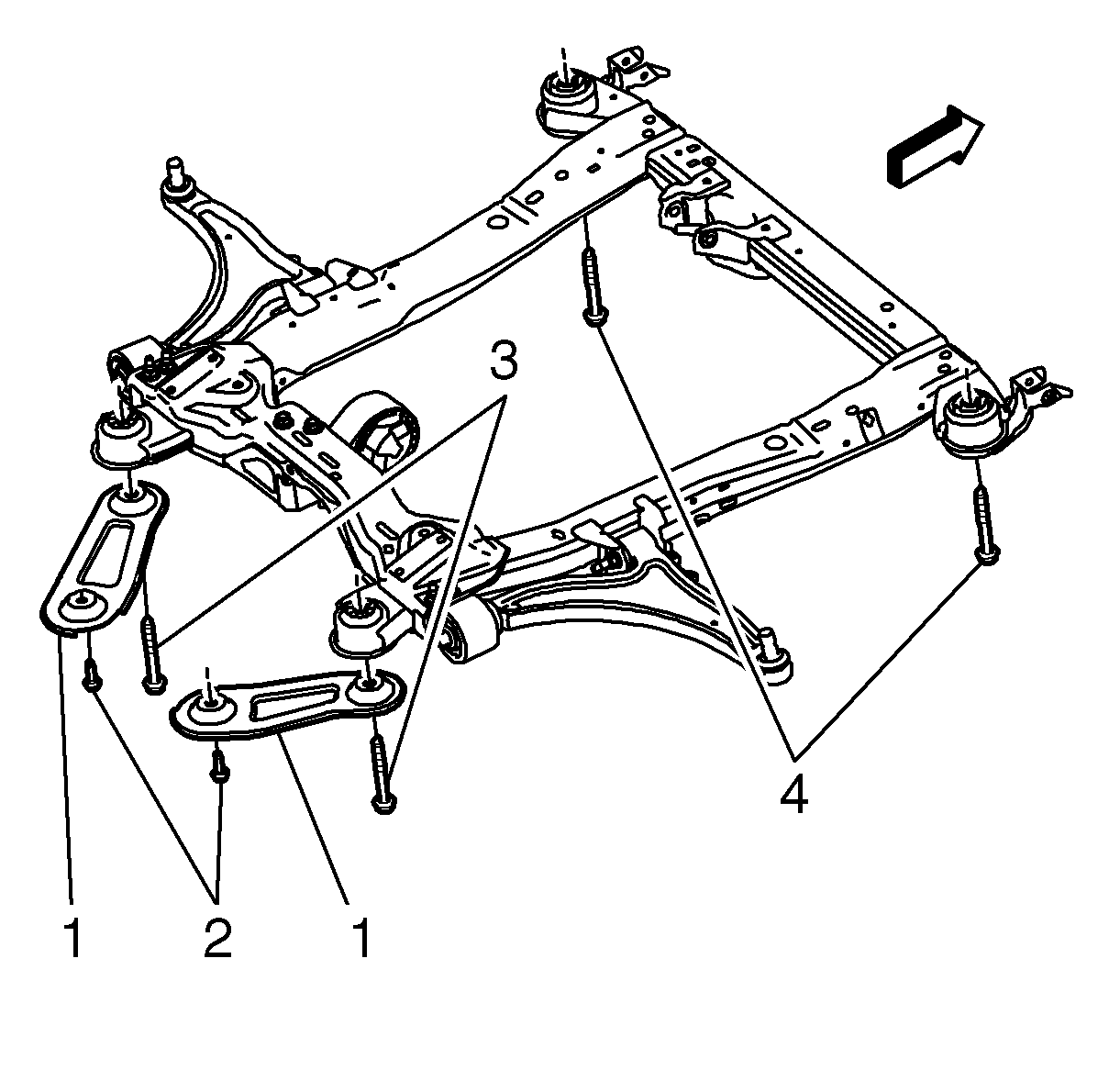

    2. Fig 1: Frame And Mounting Hardware
    GM2018936Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the frame retaining fasteners (3, 4) and tighten to 160 N.m (118 lb ft).
  3. Install NEW frame reinforcement fasteners (2) and tighten to 60 N.m (31 lb ft) plus 30 degrees.

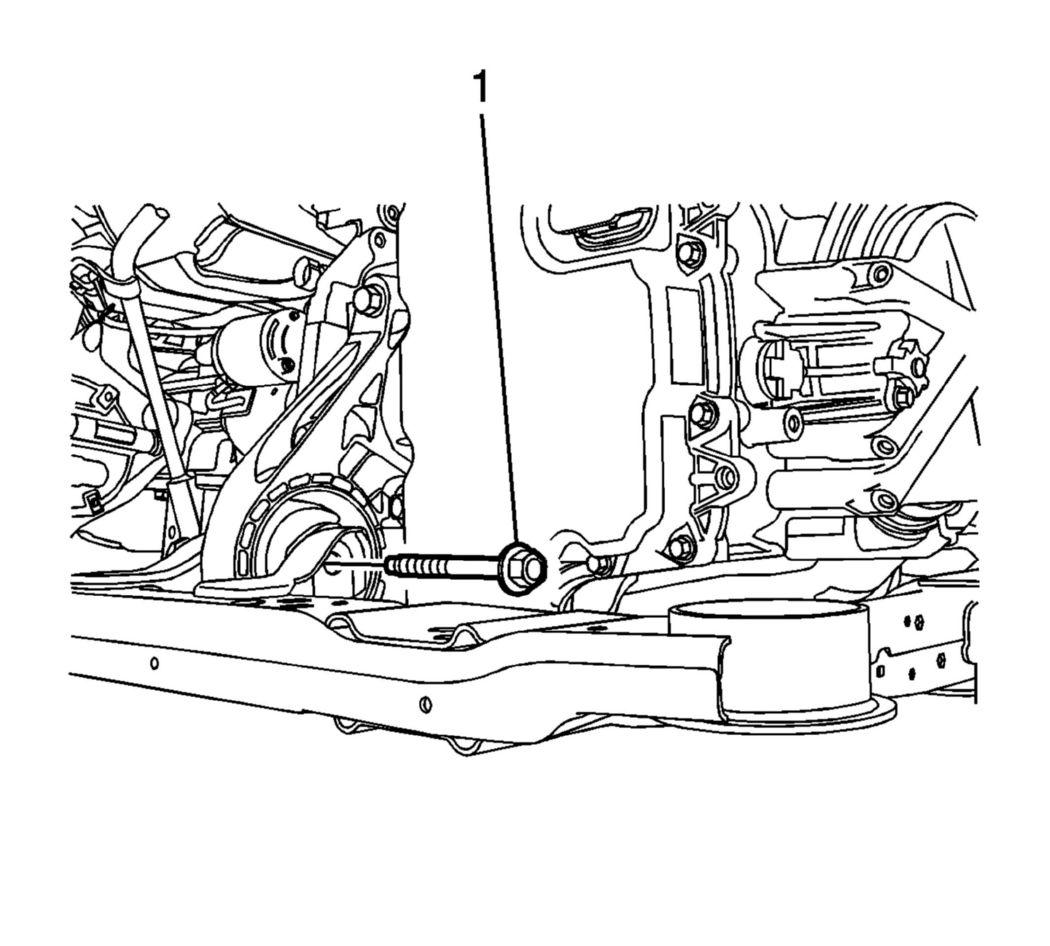

    4. Fig 2: Identifying Front Transmission Mount Through Bolt
    GM2199369Courtesy of GENERAL MOTORS COMPANY
  4. Install the front transmission mount through bolt (1) and tighten to 100 N.m (74 lb ft).

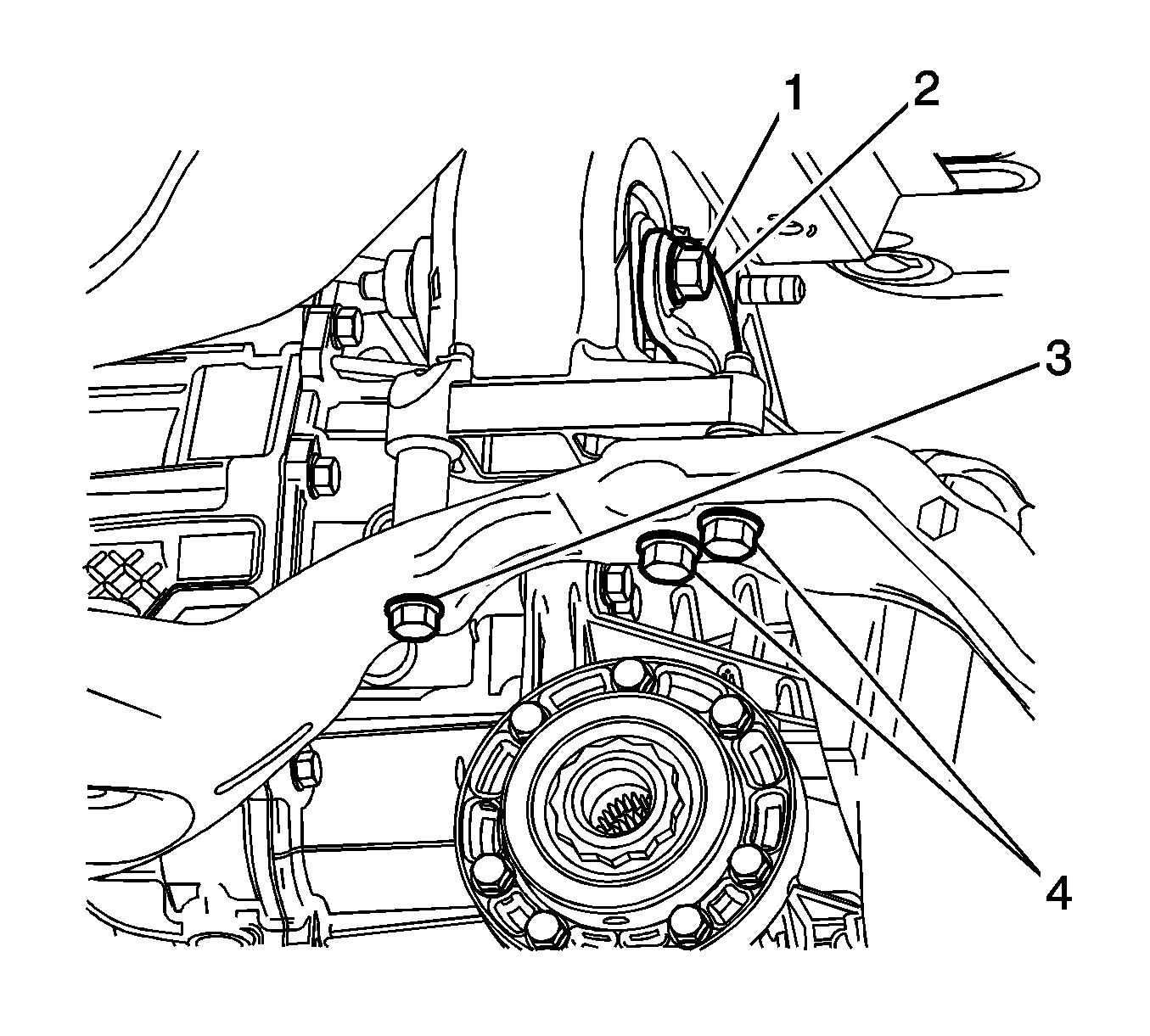

    5. Fig 3: Transaxle Mount Components
    GM2201655Courtesy of GENERAL MOTORS COMPANY
  5. Install the rear transmission mount fastener (3) and tighten to 62 (46 lb ft).
  6. Install the rear transmission mount fasteners (4) and tighten to 100 N.m (74 lb ft).
  7. Remove the mechanics wire and install the steering gear with NEW fasteners and tighten to 110 N.m (81 lb ft) plus 150 degrees, plus 15 degrees.

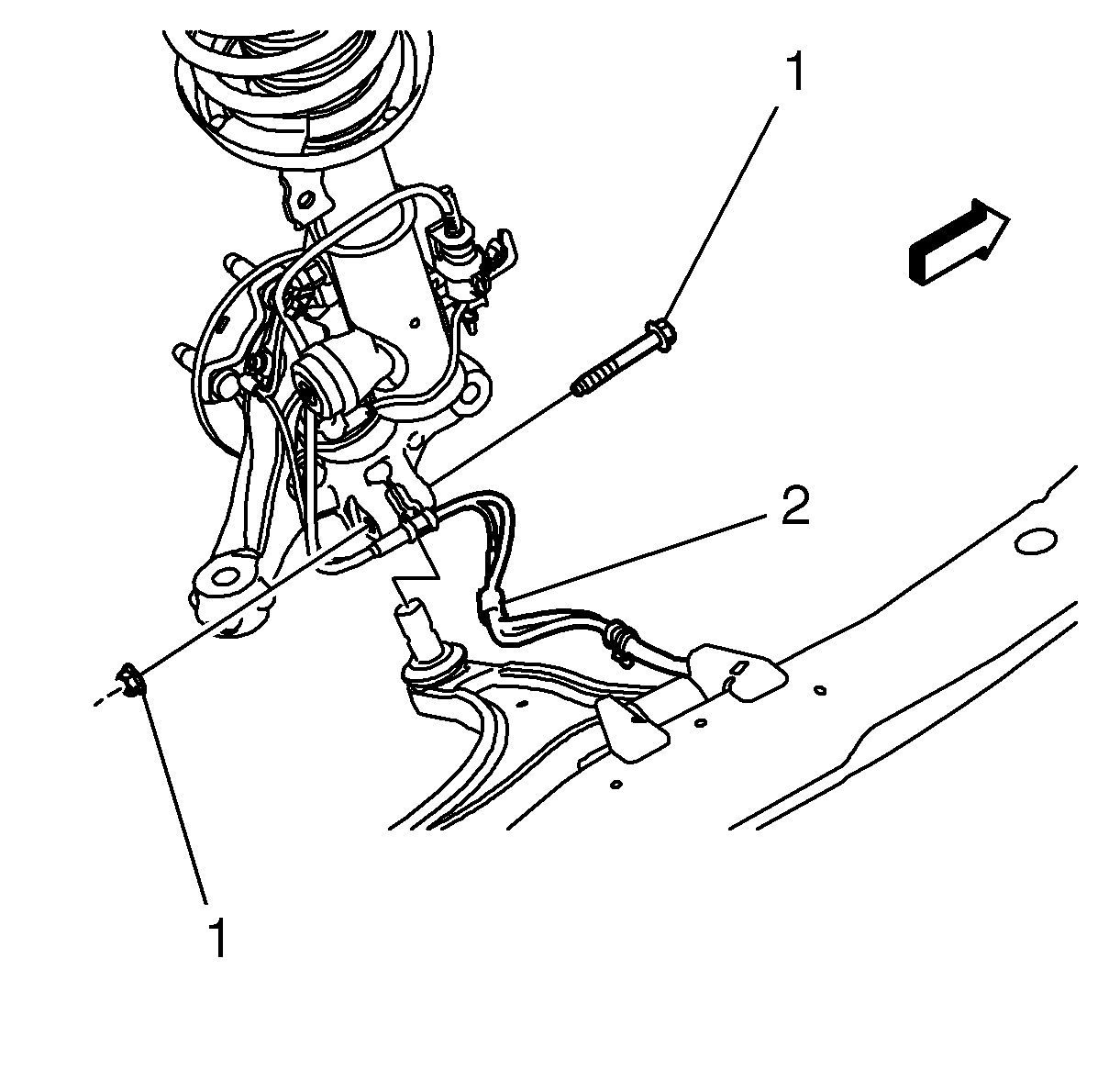

    8. Fig 4: Electrical Harness And Power Steering Cooler Line Clips
    GM2018935Courtesy of GENERAL MOTORS COMPANY
  8. Install the electrical harness and the power steering cooler line to the clips in the frame (2).
  9. Connect the ball joint studs to the steering knuckles (1). Refer to Lower Control Arm Replacement (GNA) or Lower Control Arm Replacement (GNB) .
  10. Untie the radiator, air conditioning condenser, and fan module assembly from the upper radiator support.
  11. Connect the left and right stabilizer links to the strut assemblies. Refer to Stabilizer Shaft Link Replacement .
  12. Connect the tie rod ends to the steering knuckles. Refer to Steering Linkage Outer Tie Rod Replacement .
  13. Install the front exhaust pipe. Refer to EXHAUST FRONT PIPE REPLACEMENT (LTG FWD) , Exhaust Front Pipe Replacement (LUK) or EXHAUST FRONT PIPE REPLACEMENT (LTG AWD) .
  14. If equipped with AWD, install the propeller shaft. Refer to Propeller Shaft Replacement .
  15. Remove the engine support fixture.
  16. Install the front fascia. Refer to Front Bumper Fascia Replacement .
  17. Install the front wheels. Refer to Tire and Wheel Removal and Installation .
  18. Lower the vehicle.
  19. Check the wheel alignment if replacing the drivetrain and front suspension frame. Refer to Front Camber Adjustment , or Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
