Stabilizer Shaft Link Replacement (GNA, GNB)

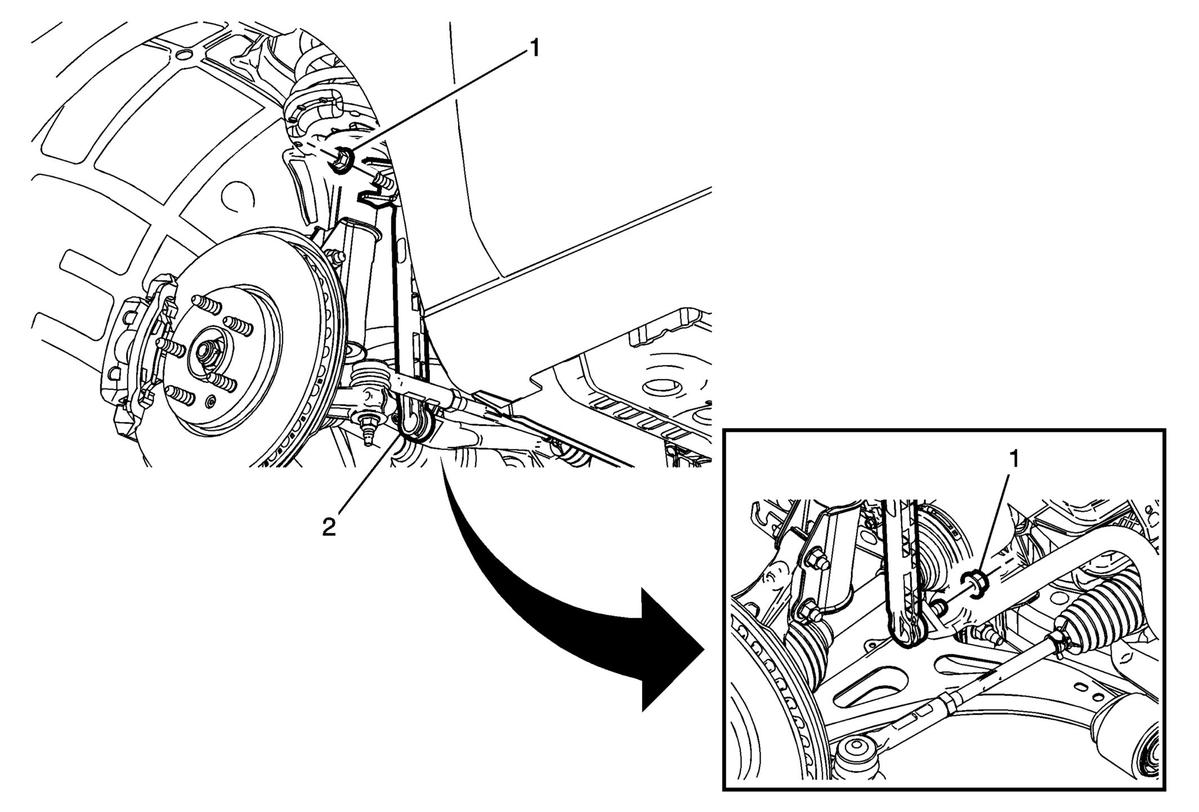

Fig 1: Stabilizer Shaft Link (GNA, GNB)

GM2911106

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Disconnect any harnesses or retainers secured to the stabilizer shaft link. Note any attaching points to aid in installation.

1

Stabilizer Shaft Link Nut (Qty:2)

CAUTION:

Refer to Fastener Caution .

Tighten
65 N.m (48 lb ft)

2

Stabilizer Shaft Link
