Headlamp Switch Molding Replacement

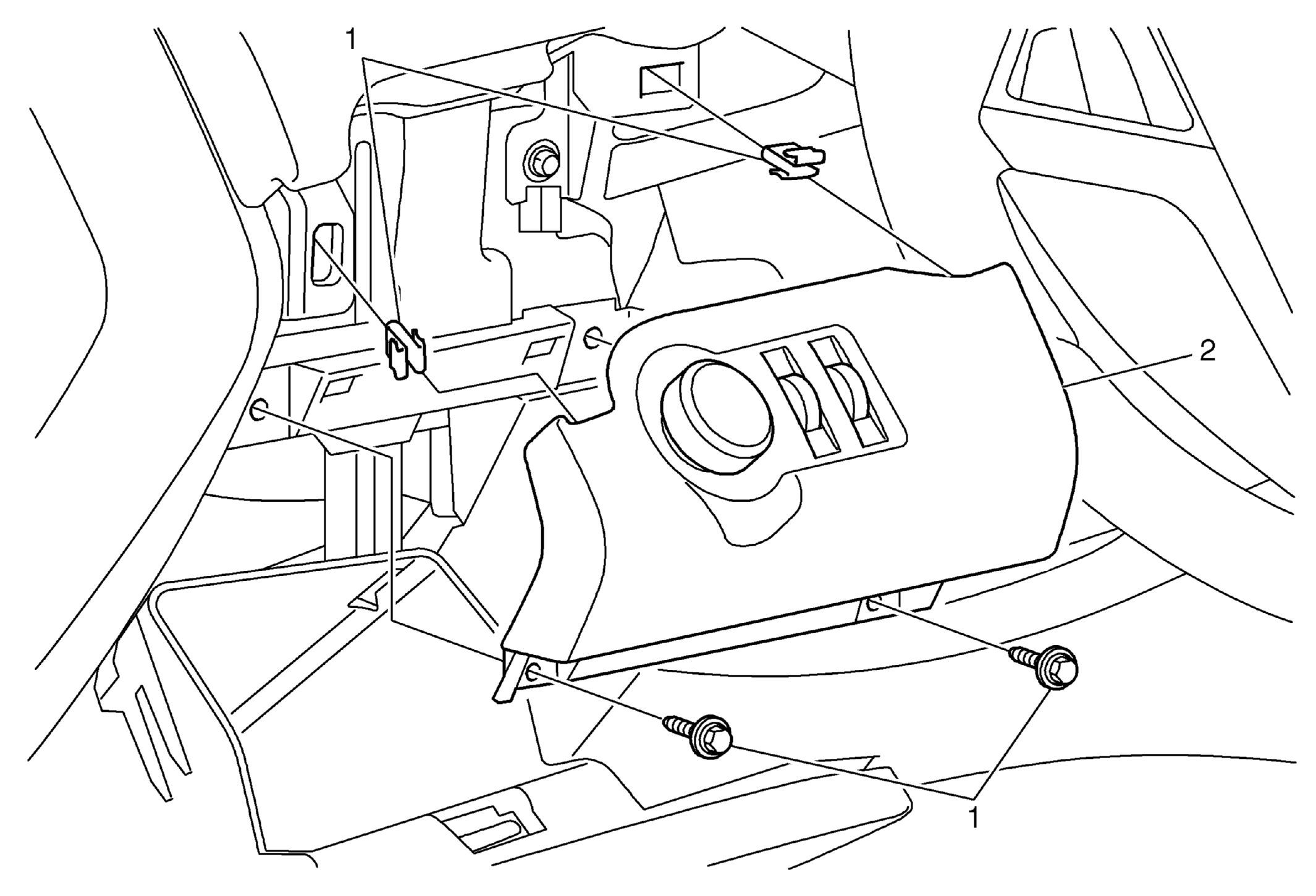

Fig 1: Headlamp Switch Molding & Fasteners
GM2193982Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Headlamp Switch Molding Fastener (Qty:4)

Procedure

  1. Open instrument panel outer compartment.

    TIP:  Use a flat-bladed plastic trim tool to release the headlamp switch molding from the instrument panel.

  2. Disconnect the electrical connections.
2 Instrument Panel Headlamp Switch Molding
Procedure
If replacing the instrument panel headlamp switch molding, transfer the headlamp switch.
