Instrument Panel Outer Compartment Replacement
Instrument Panel Outer Compartment Replacement

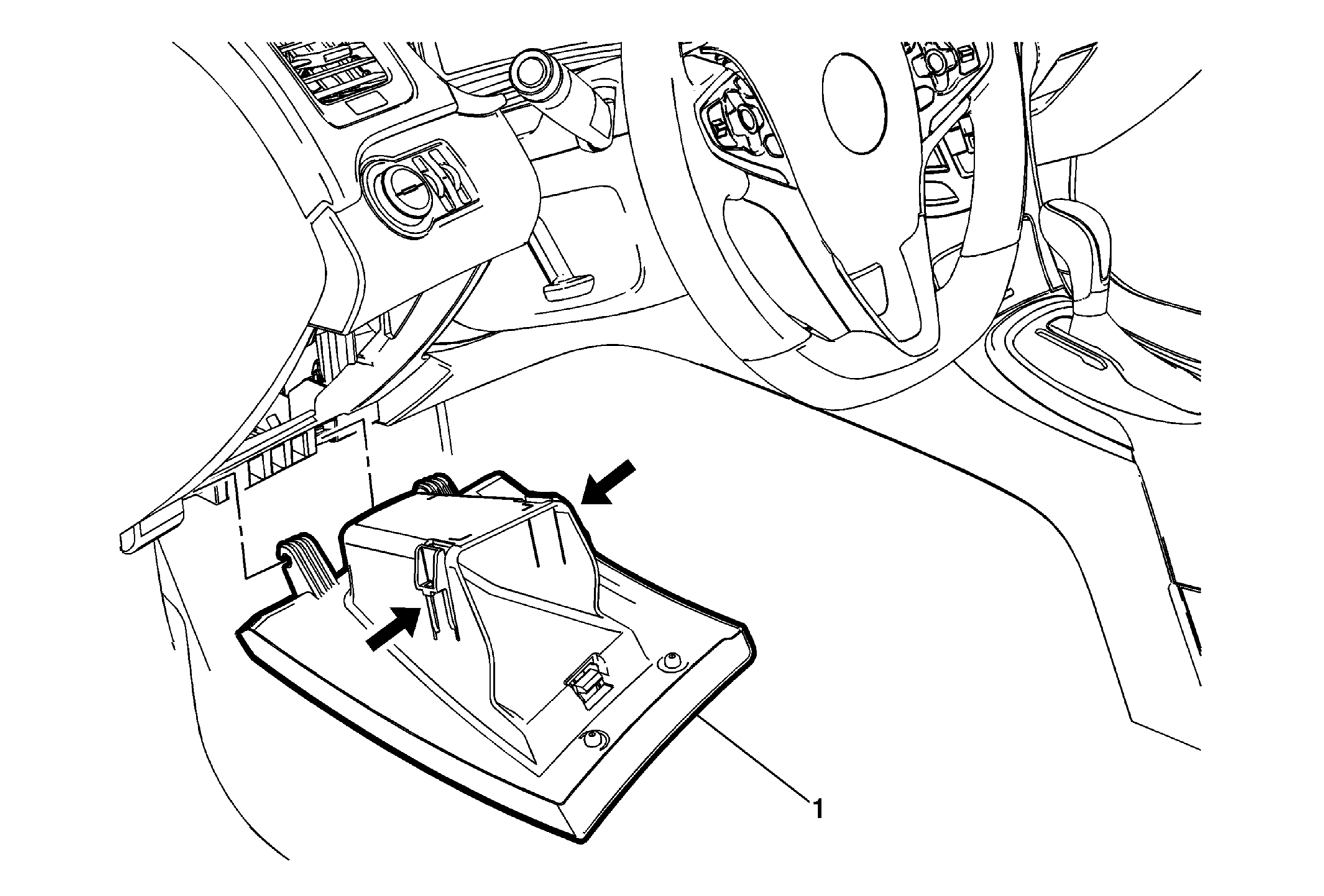

Fig 1: Instrument Panel Outer Compartment
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Instrument Panel Outer Compartment
Procedures
Use an appropriate tool in order to release the tabs allowing the compartment to open past the stops.
Unsnap the compartment from the instrument panel lower trim panel.
