Steering Column Trim Cover Replacement

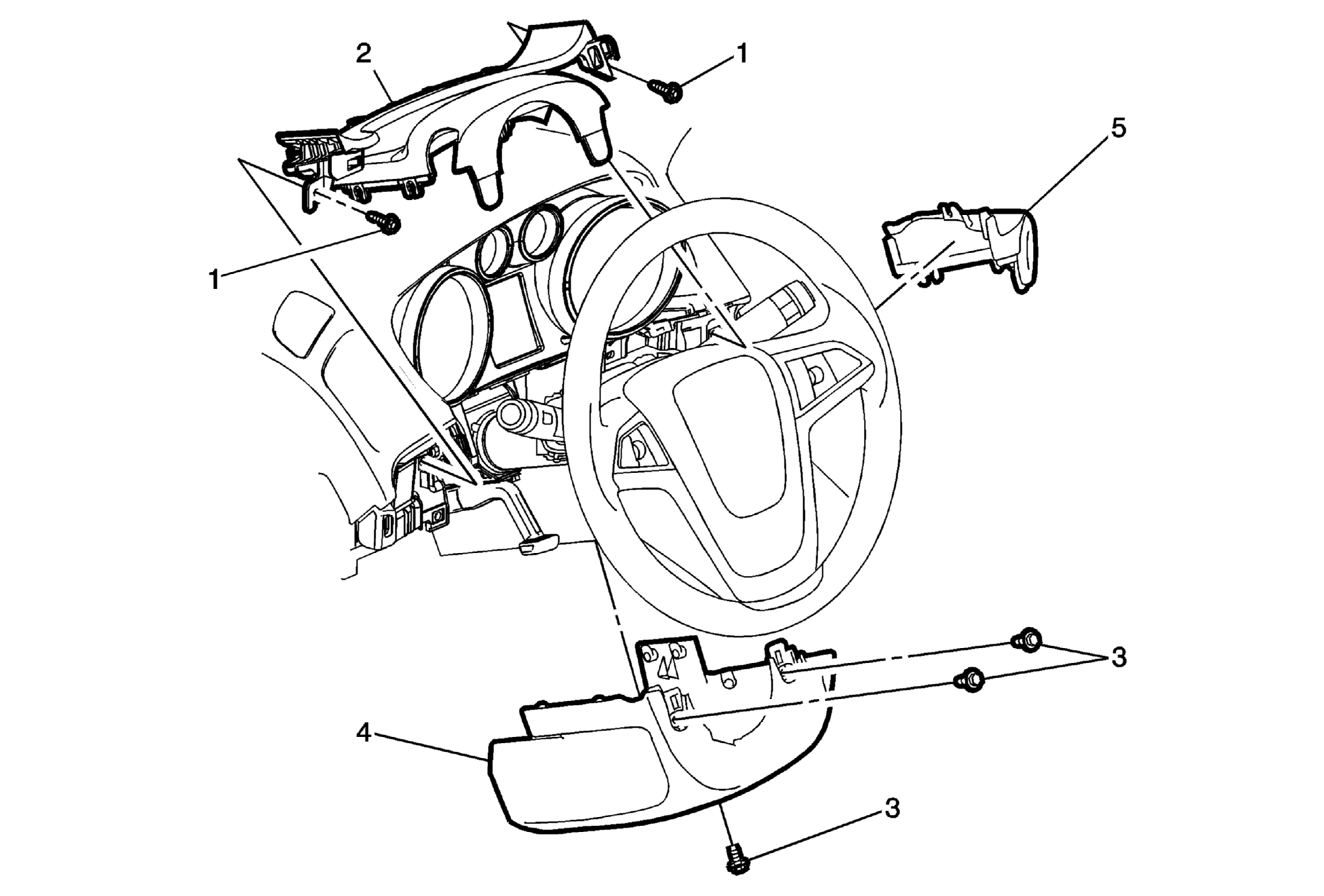

Fig 1: Steering Column Trim Cover & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the driver side instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement (Passenger Side) . Remove the headlamp switch molding. Refer to Headlamp Switch Molding Replacement .
1	Instrument Panel Steering Column Upper Trim Cover Fastener (Qty:2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Steering Column Upper Trim Cover Procedure Telescope the steering column to its most extended position. Turn the steering wheel for access.
3	Instrument Panel Steering Column Lower Trim Cover Fastener (Qty:3) Procedure Turn the steering wheel to access the upper fasteners, Tighten 2.5 N.m (22 lb in)
4	Instrument Panel Steering Column Lower Trim Cover
5	Ignition Lock Cylinder Bezel
