Front End Upper Tie Bar Replacement

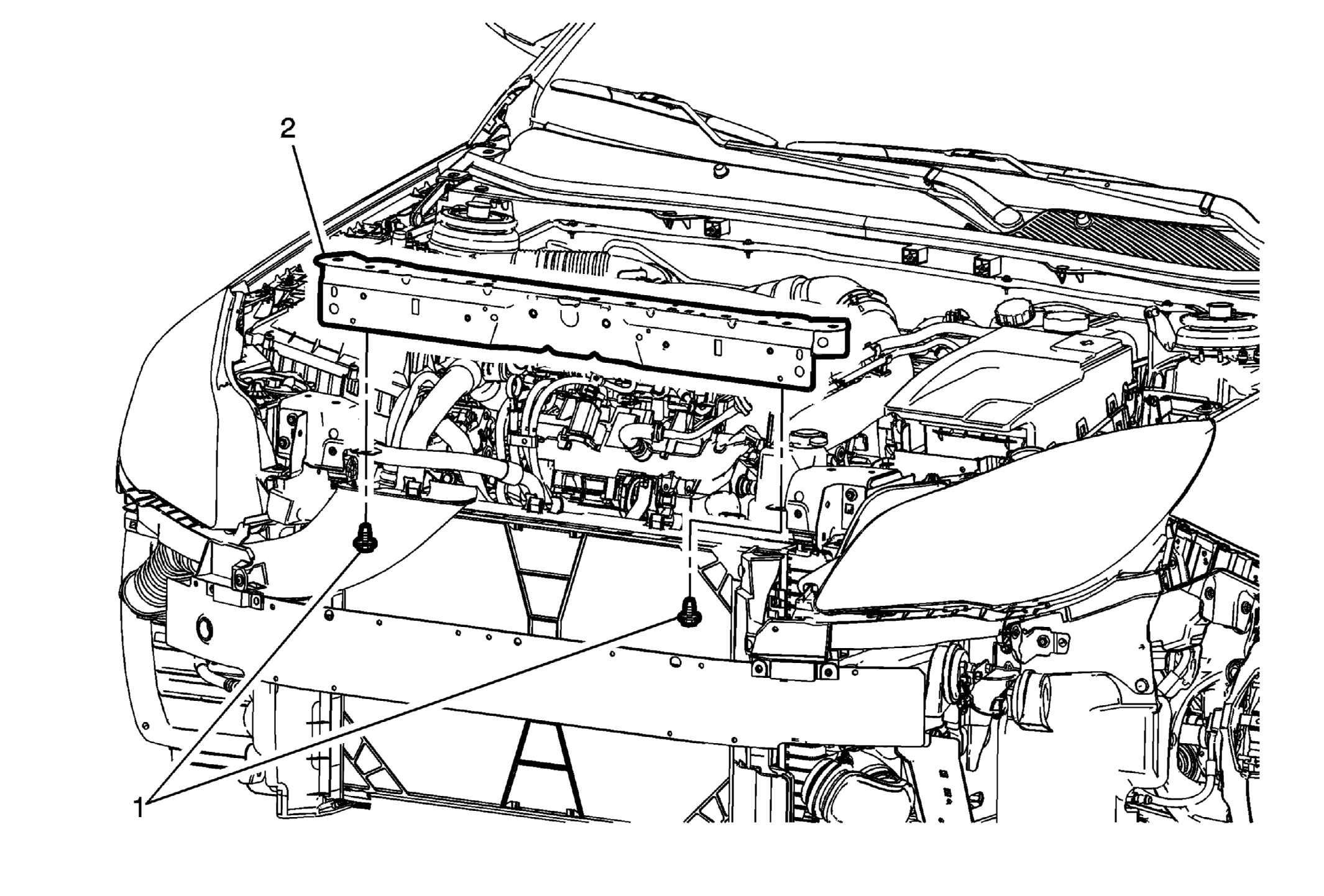

Fig 1: Front End Upper Tie Bar

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Center Support Replacement - Upper . Remove the front bumper fascia lower support. Refer to Front Bumper Fascia Center Support Replacement - Lower Remove the hood primary latch. Refer to Hood Primary Latch Replacement . Remove the hood front bumper bracket. Refer to Hood Front Bumper Bracket Replacement Remove the forward radar range bracket. Refer to Forward Range Radar Bracket Replacement Reposition the hood latch cable from the front end upper tie bar.
1	Front End Upper Tie Bar Bolt (Qty:2) CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Front End Upper Tie Bar Procedure Transfer parts as necessary. Disconnect and unclip the wiring harness from the tie bar if needed.

Callout

Component Name

Preliminary Procedures

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Center Support Replacement - Upper .
Remove the front bumper fascia lower support. Refer to Front Bumper Fascia Center Support Replacement - Lower
Remove the hood primary latch. Refer to Hood Primary Latch Replacement .
Remove the hood front bumper bracket. Refer to Hood Front Bumper Bracket Replacement
Remove the forward radar range bracket. Refer to Forward Range Radar Bracket Replacement
Reposition the hood latch cable from the front end upper tie bar.

Front End Upper Tie Bar Bolt (Qty:2)

CAUTION:

Tighten
20 N.m (15 lb ft)

Front End Upper Tie Bar
Procedure
Transfer parts as necessary.
Disconnect and unclip the wiring harness from the tie bar if needed.
