Front Bumper Fascia Center Support Replacement - Upper

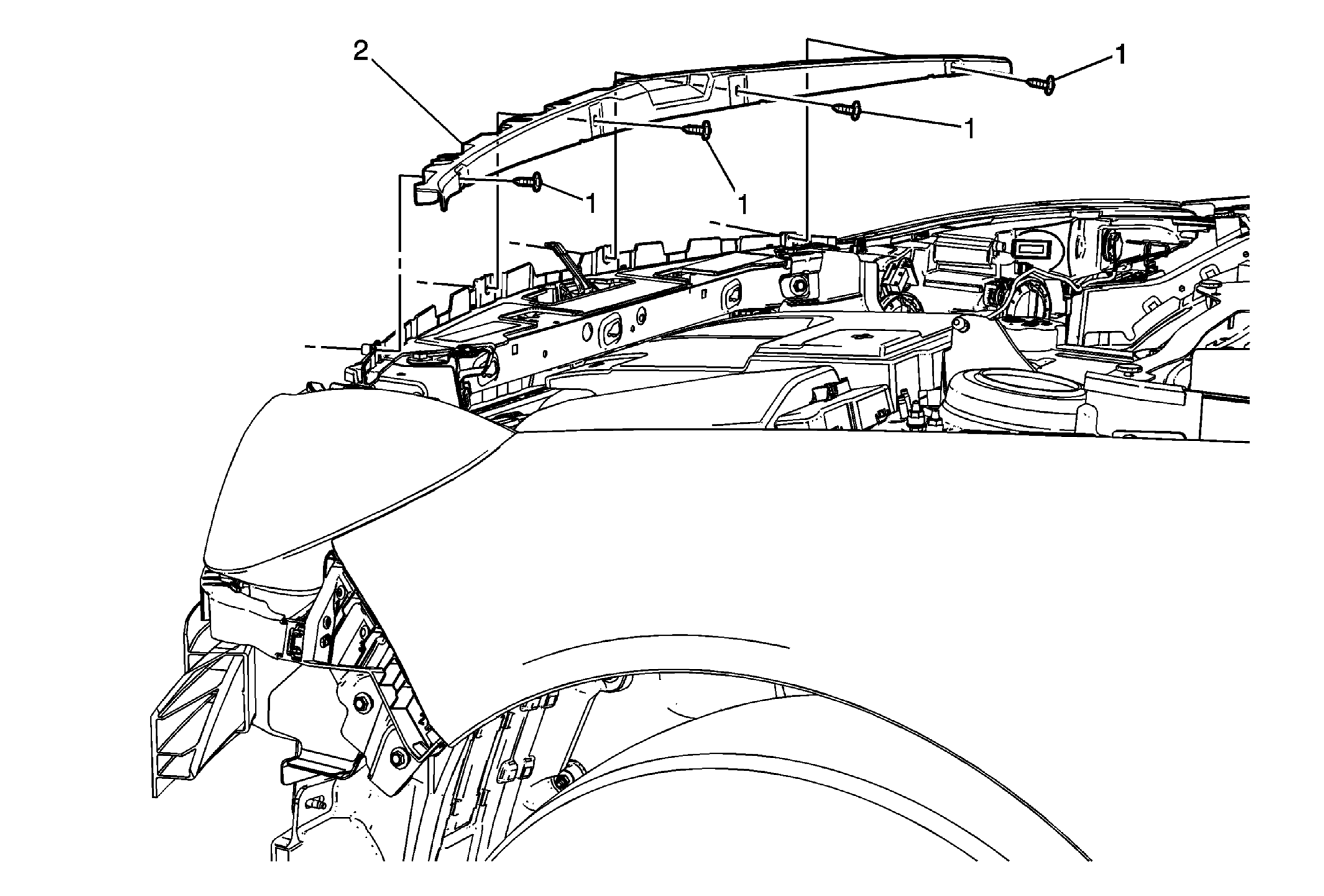

Fig 1: Front Bumper Fascia Center Upper Support

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Bumper Fascia Center Support Upper Fastener (Qty:4) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Bumper Fascia Center Support Upper
