Hood Front Bumper Bracket Replacement

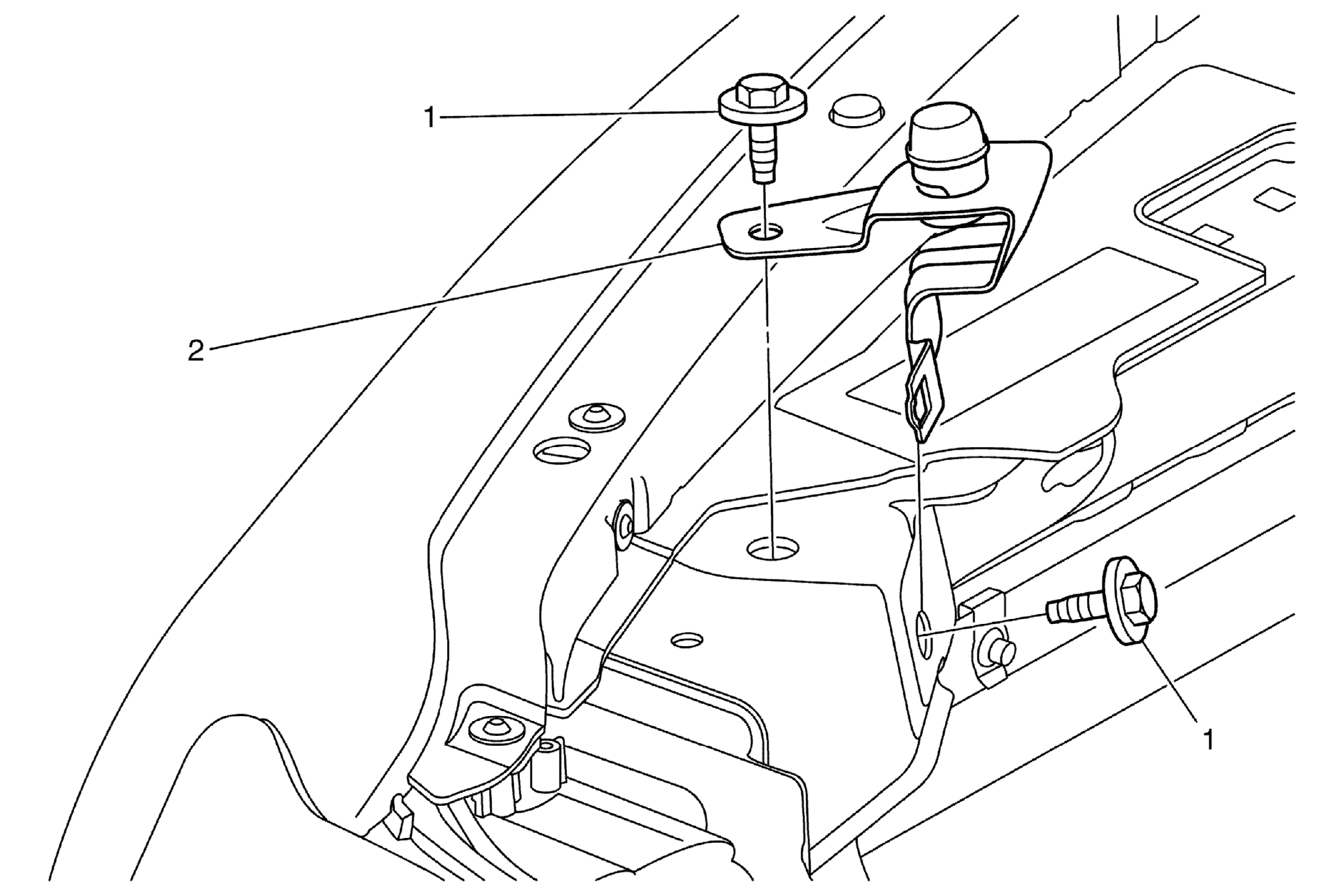

Fig 1: Hood Front Bumper Bracket & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Hood Front Bumper Bracket Fastener (Qty:2) CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Hood Front Bumper Bracket
