Hood Primary Latch Replacement

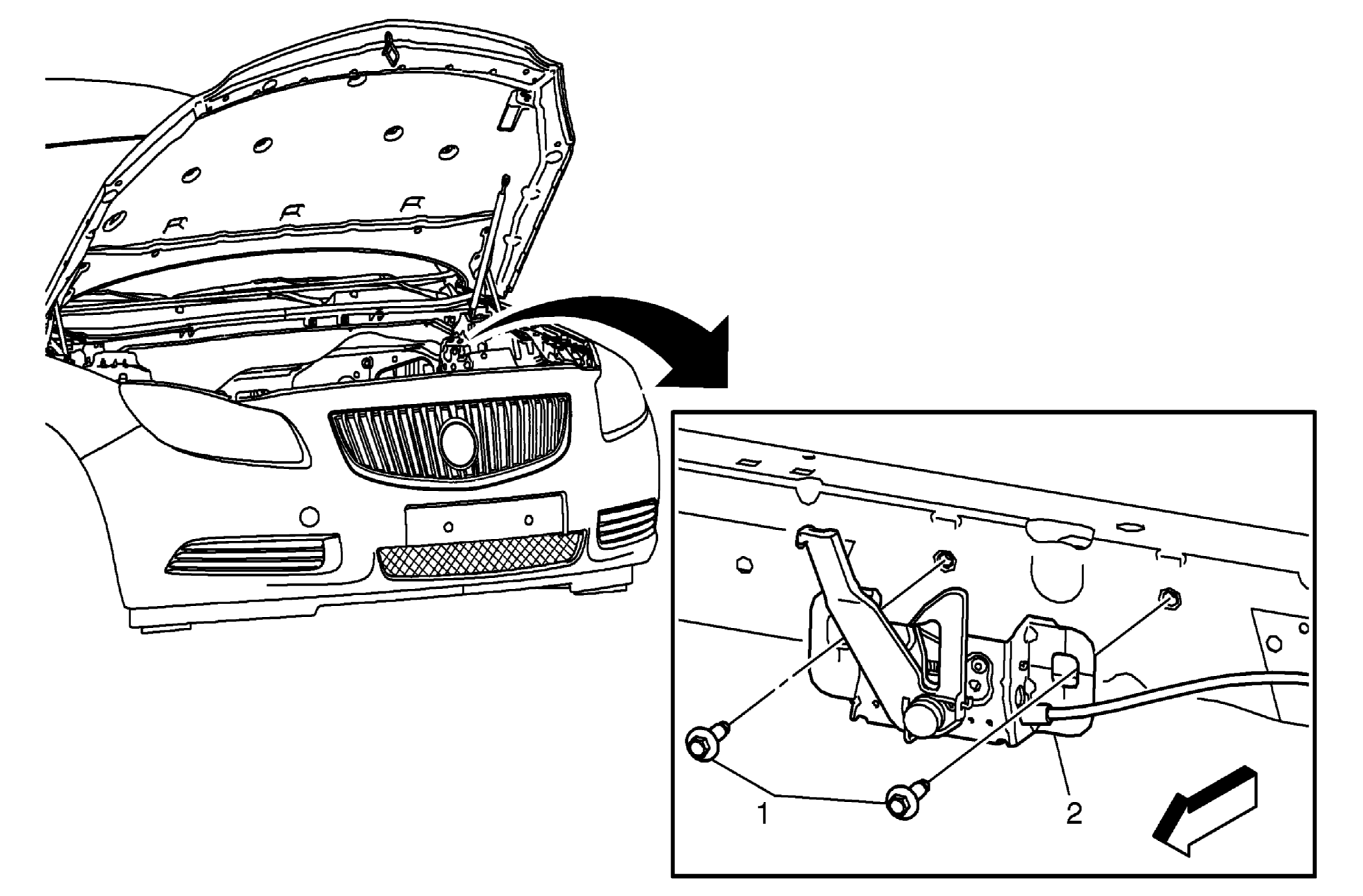

Fig 1: Hood Primary Latch & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia center support upper. Refer to Front Bumper Fascia Center Support Replacement - Upper .
1	Hood Primary Latch Fastener (Qty:2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Primary Latch Procedure Release the hood cable.
