Seat Back Frame Replacement - Front

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

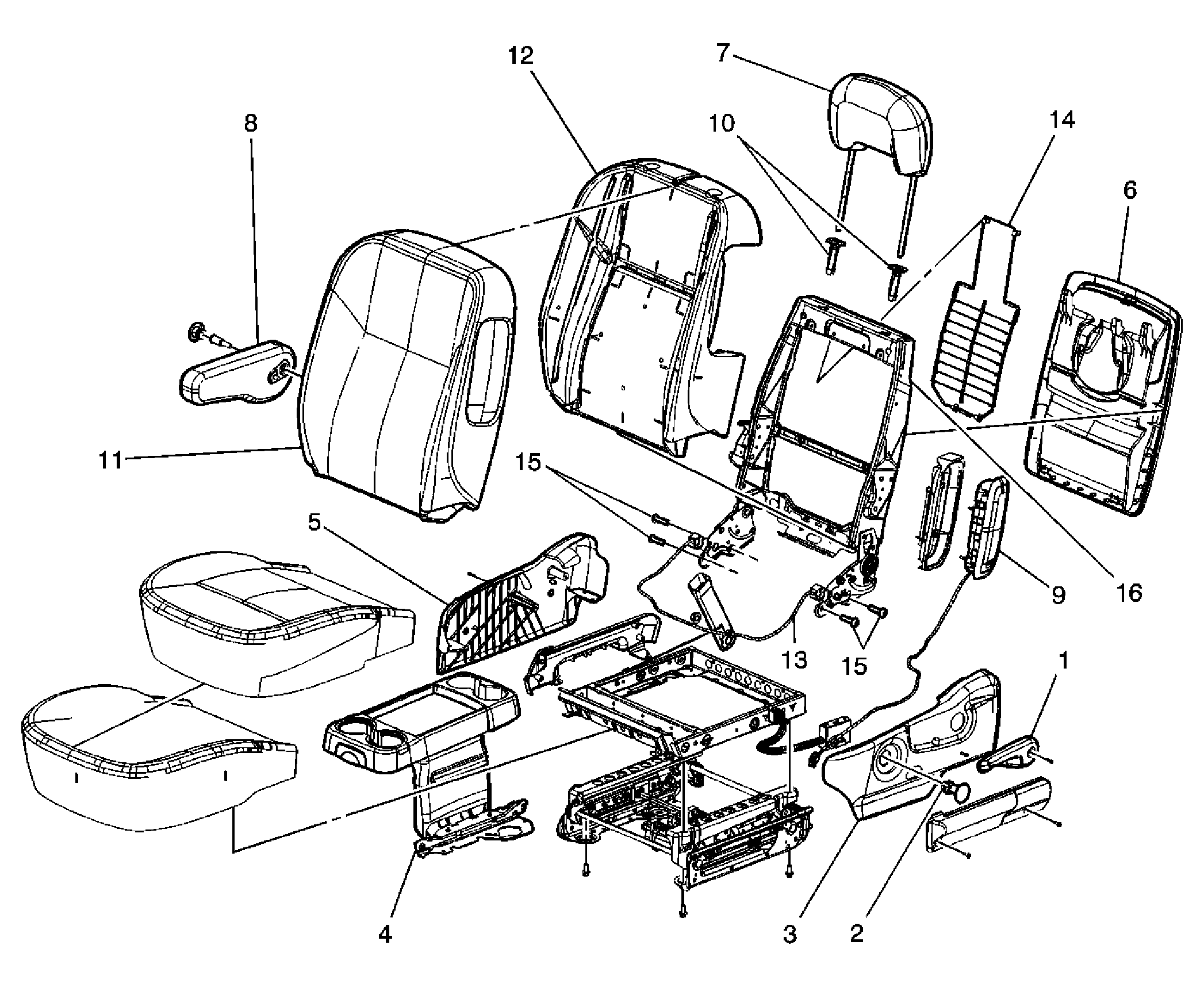

Fig 1: View Of Front Seat Back Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front bucket seat. Refer to Seat Replacement - Front Bucket .
1	Handle, Seat Recliner Refer to Seat Back Recliner Handle Replacement - Front .
2	Plug, Seat Recliner Handle
3	Cover, Seat Outer Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
4	Tray Assembly, Seat Refer to Storage Tray Replacement - Front Seat .
5	Cover, Seat Outer Adjuster Refer to Seat Adjuster Track Cover Replacement - Front .
6	Panel Assembly, Seat Back Refer to Seat Back Panel Replacement - Front .
7	Head Restraint Assembly Refer to Head Restraint Replacement - Front Seat .
8	Armrest Assembly Refer to Armrest Replacement - Front Seat .
9	Module Assembly, Inflatable Restraint Refer to Inflatable Restraint Side Impact Module Replacement - Front in SIR.
10	Guide Assembly, Head Restraint (Qty: 2)
11	Cover, Seat Back Cushion Refer to Seat Back Cover and Pad Replacement - Front .
12	Pad, Seat Back Cushion Refer to Seat Back Cover and Pad Replacement - Front .
13	Cable Assembly, Seat Back Recliner Refer to Seat Back Recliner Cable Replacement - Front .
14	Support Assembly, Seat Back Cushion
15	Bolt, Seat Back Recliner (Qty: 4) Tighten: 48 N.m (35 lb ft)
16	Frame, Seat Back Cushion
