Seat Back Cover and Pad Replacement - Front

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

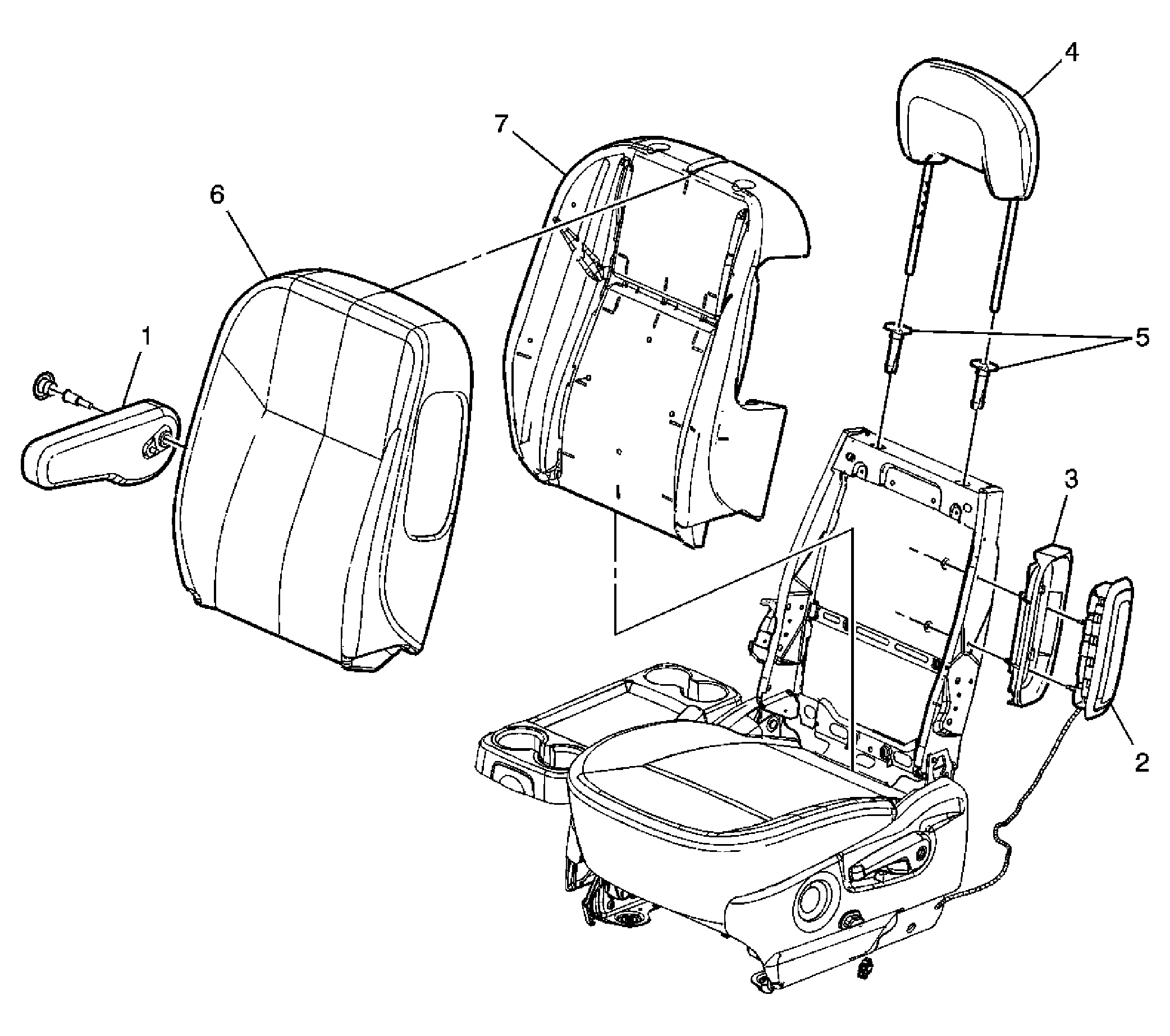

Fig 1: View Of Front Seat Back Cover & Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front bucket seat. Refer to Seat Replacement - Front Bucket . Remove the seat back panel. Refer to Seat Back Panel Replacement - Front .
1	Armrest Assembly Refer to Armrest Replacement - Front Seat .
2	Module Assembly, Inflatable Restraint Refer to Inflatable Restraint Side Impact Module Replacement - Front in SIR.
3	Cover, Side Impact Air Bag Escutcheon
4	Head Restraint Assembly Refer to Head Restraint Replacement - Front Seat .
5	Guide Assembly, Head Restraint (Qty: 2) Tip: Release the bottom of the seat back cover and pull the cover up enough to gain access to the guide assembly. Press the bottom of the guide assembly together and push upward to remove from the seat back.
6	Cover, Seat Back Cushion Tip: Remove the hog rings that attach the seat cushion cover to the seat cushion.
7	Cushion, Seat Back
