Armrest Replacement - Front Seat
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Armrest Replacement - Front Seat

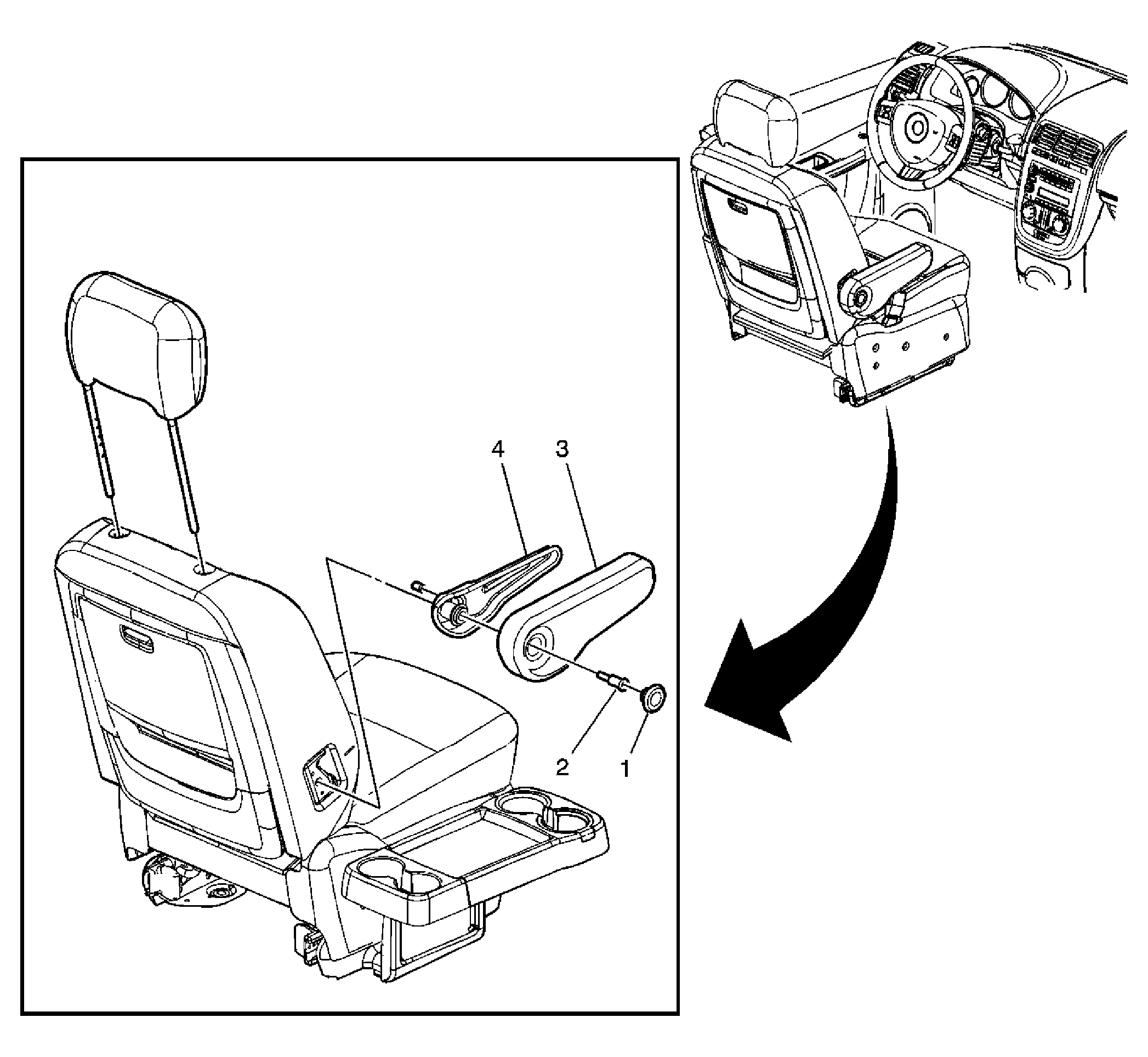

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
in Cautions and Notices. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| 1 | Cap, Armrest |
| 2 | Bolt, Armrest Tighten: 9 N.m (80 lb in) |
| 3 | Cover, Armrest |
| 4 | Armrest |
