Installing the left cylinder head

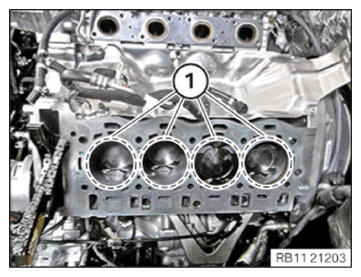

• There must be no fluids or foreign materials in the cylinder bores, remove if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

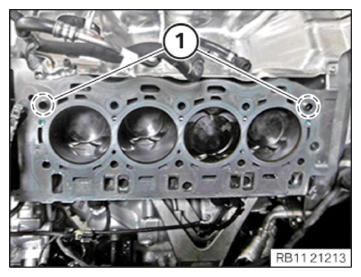

• Check the fitting sleeves (1) for correct seating and damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

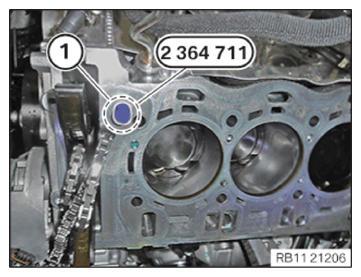

• Close oil hole in the area (1) with a classification B plug from the set of special tools 2 364 711 .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean sealing surface (1) with special tool  0 495 103 (11 4 471)  from set of special tools 0 495 102 (11 4 470).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean sealing surface (1) with special tool  0 495 104 (11 4 472)  from set of special tools 0 495 102 (11 4 470).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  If there are foreign bodies or fluids present in the bores, the tightening torque values can be falsified.

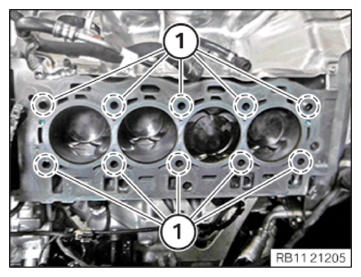

• Clean bores of cylinder head bolts (1) with compressed air.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean sealing surface (1) with special tool  0 495 103 (11 4 471)  from set of special tools 0 495 102 (11 4 470).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean sealing surface (1) with special tool  0 495 104 (11 4 472)  from set of special tools 0 495 102 (11 4 470).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace cylinder head gasket (1).

  Parts:  Cylinder head gasket

• Replace screws.

  Parts:  Screws

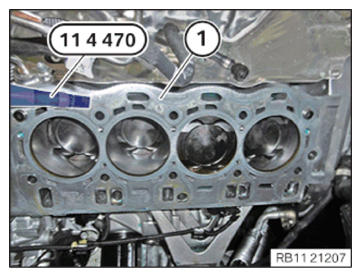

• Position cylinder head gasket (1) on the fitting sleeves on the engine block.

  If the cylinder head has been reworked, a thicker cylinder head gasket must be installed.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position cylinder head with a workshop crane.
  NOTE: RISK OF DAMAGE
  Damage to guide rails.
  The application of great force can damage the guide rails of the timing chain.

  • When removing and installing the cylinder head, make sure that the cylinder head does not damage the guide rail.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The work must be performed with vehicle care to prevent component damage.
• Insert cylinder head.
  NOTE: TECHNICAL INFORMATION
  The work must be performed with vehicle care to prevent component damage.
• Detach the special tool 0 490 567 (11 0 020) on the retaining tab (1) and on the special tool  0 494 116 (11 8 352)  from the set of special tools 0 493 997 (11 8 350).

Tightening left cylinder head

Tightening the left cylinder head

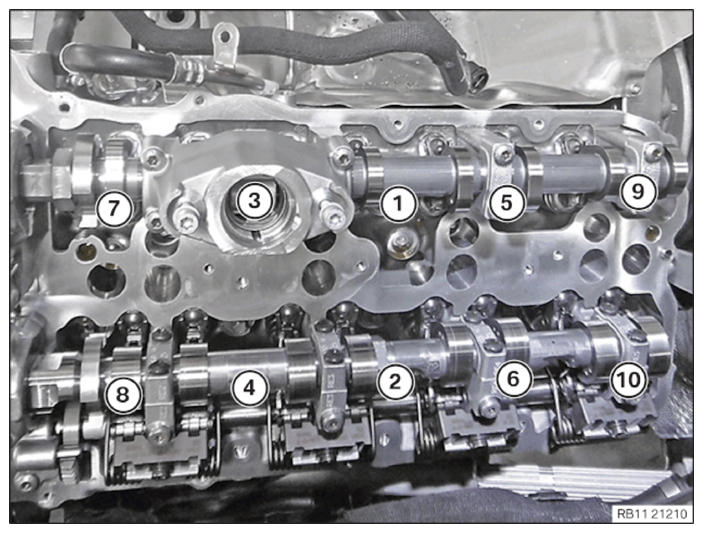

Fig 1: Left Cylinder Head Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screws in the order (1) to (10).

• Detach the special tool 0 490 567 (11 0 020) on the engine mounting bracket (1) and on the special tool 0 494 116 (11 8 352) from the set of special tools 0 493 997 (11 8 350).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the screws (1) on the special tool  0 494 116 (11 8 352)  from the set of special tools 0 493 997 (11 8 350) from the cylinder head.
• Remove the special tool 0 494 116 (11 8 352) from the set of special tools 0 493 997 (11 8 350) .

  Courtesy of BMW OF NORTH AMERICA, INC.

  Fastening cylinder head bolts on timing case cover

  • Secure the screws (1) to the timing case cover.
  TIGHTENING TORQUE SPECIFICATIONS



  Cylinder head bolt to timing case cover
  M8x30	tightening torque	23 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Mounting the special tool on the processed surface of the camshaft

  • Pay attention to the installation position:

    For the camshaft (1) there are three machined surface. The special tool 2 249 117 can only be mounted in the marked position, (arrow).

  • Mount special tool 2 249 117 .

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Replace sealing ring (1).
  • Position sealing ring (1) on the bearing bolt (2).

    Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the slide rail.
  • Tighten the screw of the slide rail on the cylinder head of cylinder bank (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Slide rail to cylinder head
  Bearing screw	Tightening torque	25 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install both exhaust manifolds

  NOTE: TECHNICAL INFORMATION
  The sealing surfaces must be free of oil, grease and cleaning agents.
  NOTE: TECHNICAL INFORMATION
  Make sure that there are no particles or impurities in the medium openings.
  Coolant or foreign substances in the oil can cause engine damage such as damage to the connecting rod bearing.
  NOTE: RISK OF DAMAGE
  Careless handling of tools and sharp edged components.
  Scratches, surface damage.

  • Protect working area.
  • Handle tools and components carefully.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean sealing surfaces (1).
  NOTE: TECHNICAL INFORMATION
  The sealing surfaces must be free of oil, grease and cleaning agents.
  NOTE: TECHNICAL INFORMATION
  Make sure that there are no particles or impurities in the medium openings. Coolant or foreign substances in the oil can cause engine damage such as damage to the connecting rod bearing.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Careless handling of tools and sharpened components.
  Scratches, surface damage.

  • Protect working area.
  • Handle tools and components carefully.
• Clean sealing surfaces (1).
• Replace seals (1).

  Parts:  Seals

• Position seals (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The seals fit in one installation orientation only. Ensure correct installation.
• Install seal (1) with the side of the bead (2) (seal cavity) toward the exhaust manifold (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position exhaust manifold (2).
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Exhaust manifold
  M8x40 screw Replace screw.	tightening torque	25 Nm
  	Angle of rotation	45°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position exhaust manifold (2).
• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Slide the coolant hose on.
• Tighten the hose clamp (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Coolant ventilation line
  Hose clamp	Tightening torque	1.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: To provide a better overview: Schematic diagram with partially hidden components.

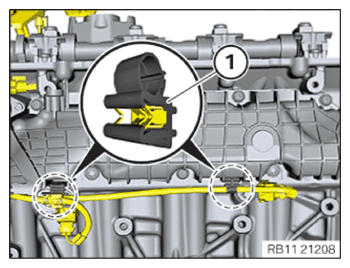

• Secure the wiring harness mountings (1) below the intake system.

Courtesy of BMW OF NORTH AMERICA, INC.
