Installing the left cylinder head cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Make sure that there are no particles or impurities in the medium openings. Coolant or foreign substances in the oil can cause engine damage such as damage to the connecting rod bearing.

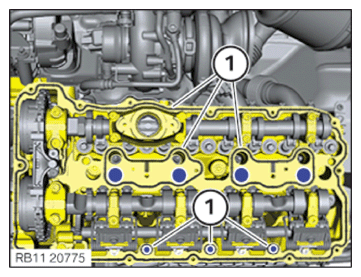

Close the openings (1) on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.
- Do not use any metal-cutting tools.
Clean the cylinder head in the area of the sealing surfaces (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

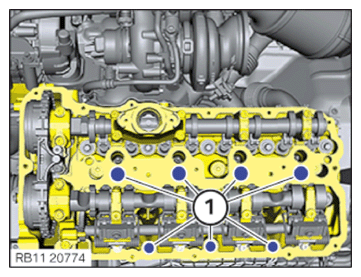

Open the openings (1) on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

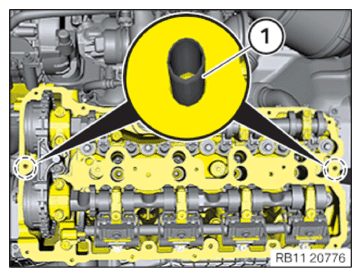

Make sure that the fitting sleeves (1) are installed.
The fitting sleeves must not be damaged or deformed.

Courtesy of BMW OF NORTH AMERICA, INC.

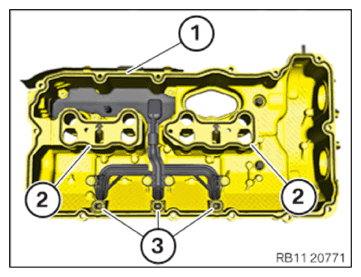

Replace the circular seal (1) .
Parts: Seal
Replace seals (2) .
Parts: Seals
Replace seals (3) .
Parts: Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Fastening cylinder head cover on the left

Cylinder head cover: Cylinders 5 to 8

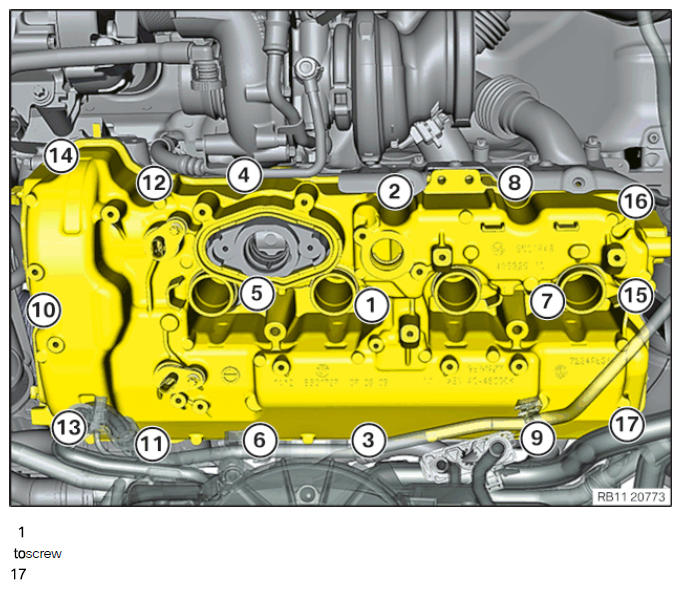

Fig 1: Left Cylinder Head Cover Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Insert cylinder head cover downwards and position it.
Abut bolts (10) and (15) .
The layout of screws (10) and (15) is required for exact positioning of the camshaft position sensors.

Tighten screws in the order (1) to (17) .

TIGHTENING TORQUE SPECIFICATIONS

Cylinder head cover to cylinder head
M6x30 screw	Tightening torque	10 Nm

Fig 2: Left Cylinder Head Cover Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Position fixture for the right (2) .
Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

mount
M6x16	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Installing both VANOS solenoid actuators, exhaust of cylinder bank 2

Position VANOS solenoid actuator (1) .

Turn VANOS solenoid actuator (1) about 50° clockwise with the special tool 2 360 895 (2) until the limit positions are on the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

Position VANOS solenoid actuator (1) .

Turn VANOS solenoid actuator (1) about 50° clockwise with the special tool 2 360 895 (2) until the limit positions are on the clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector of Valvetronic servomotor (1) and lock.

Connect connector of pressure sensor (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Position cable lugs (2) and (3) .

Tighten down screw (4) .

TIGHTENING TORQUE SPECIFICATIONS

Wiring harness to cylinder head cover
M6x16 screw	tightening torque	10 Nm

Tighten down screw (5) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Wiring harness to cylinder head cover
M6x16 screw	tightening torque	10 Nm

Connect connector (1) of intake camshaft sensor of cylinder bank 2 and lock.
