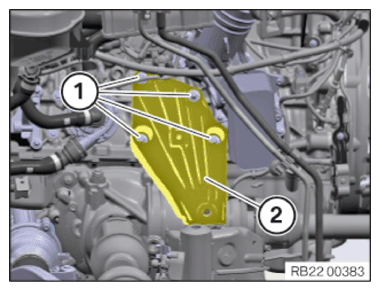

Installing the left engine support bracket

• Install the engine support bracket (2)  .
• Tighten down screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Engine support bracket on the engine
  M10	Tightening torque	38 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE ENGINE MOUNTING ON THE LEFT .
• Refer to INSTALLING CONTROL UNIT BRACKET .
• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to TAKING ENGINE OUT OF INSTALLATION ORIENTATION .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
• Refer to INSTALLING FUEL DELIVERY LINE .
• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING THE SIDE PANEL SEAL .
• Refer to INSTALLING THE LATERAL HOOD SEALS .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
