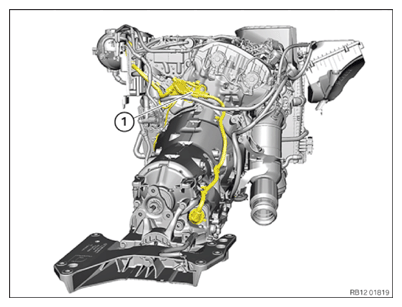

Install the wiring harness section of the transmission wiring harness

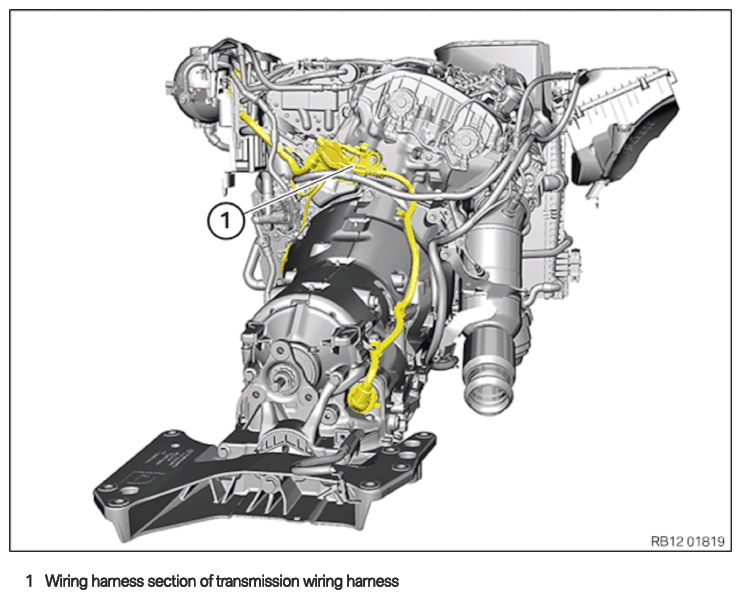

Wiring harness section of transmission wiring harness
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .
- Route all cables without abrasions, do not trap and crush.
- Insert and install the wiring harness (1)
for the transmission module.

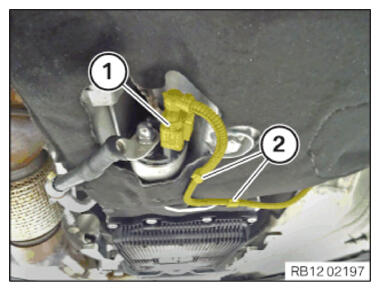

- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure the clamps (arrows).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
Fastening the transmission

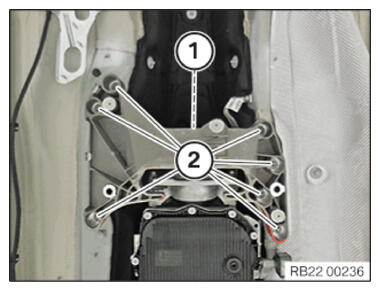

- Lift the transmission cross member (1) with the transmission in the installation position.
- Tighten down screws (2)
.TIGHTENING TORQUES SPECIFICATION
Transmission cross member to body M8 Tightening torque 19 Nm - Loosening the luggage strap (1) .

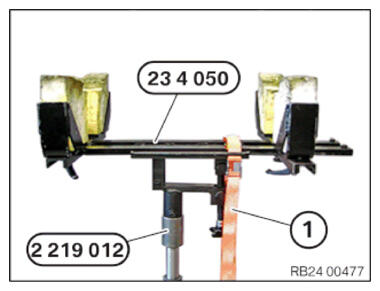

- Remove special tools 2 219 012
and 0 495 498 (23 4 050)
.

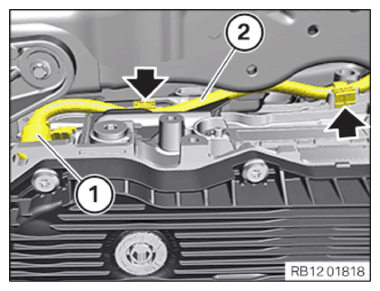

- Install the wiring harness section and fasten with the clamps (2) .
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

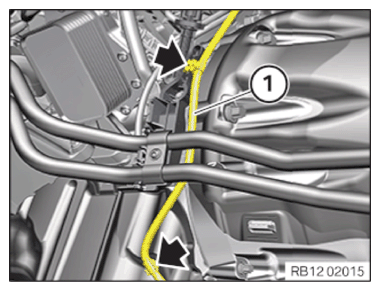

- Feed in and install the wiring harness section (1) of the transmission wiring harness.
- Secure the clamps (arrows).

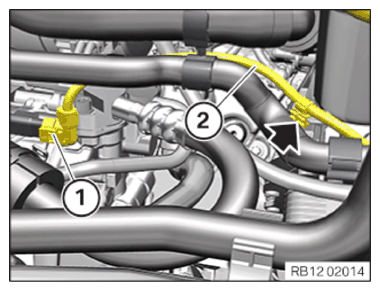

- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure clamp (arrow).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.

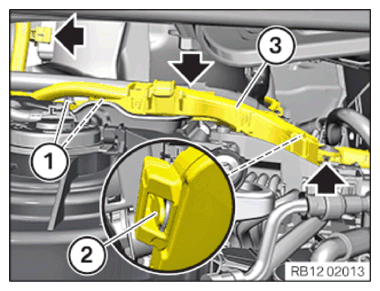

- Feed in and install the wiring harness section (3) of the transmission wiring harness.
- Make sure that the lock (2) engages correctly.
- Tighten down screws (1)
.TIGHTENING TORQUES SPECIFICATION
Cable bracket on rear cylinder head/transmission M6x20 Tightening torque 10 Nm - Secure the clamps (arrows).
