Installing left footwell temperature sensor (B184a)

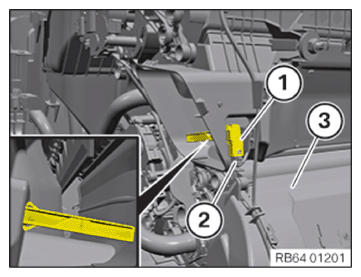

- Insert footwell temperature sensor (1) into heating and air-conditioning unit (3) and lock.
- Connect connector (2) .
Follow-up work
- Refer to INSTALLING THE HOLDER FOR THE HEAD UNIT .
- Refer to INSTALLING THE HEADUNIT HIGH (HU-H) .
- Refer to INSTALLING AUDIO CONTROL UNIT .
- Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
- Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
- Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
- Refer to INSTALLING THE DECORATIVE TRIM ON THE LEFT AND RIGHT OF THE CENTER CONSOLE .
- Refer to INSTALLING THE CENTER CONSOLE TRIM .
- Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
- Refer to INSTALLING THE CUP HOLDER .
- Refer to INSTALLING LEFT AIR DUCT .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to INITIALIZING COMPONENT PROTECTION .
