Remove heat exchanger
CAUTION:
Refrigerant circuit under high pressure.
Injury hazard!
Injury hazard!
- Note and follow safety instructions on containers.
- Avoid contact with refrigerant; wear safety goggles and hand protection.
- For additional information see: INSTRUCTIONS FOR HANDLING R1234YF REFRIGERANT , or SAFETY INSTRUCTIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A , and NOTES FOR REPAIR WORK ON AIR CONDITIONING .
Preliminary work
- Refer to ENTER THE INSTALLATION POSITION OF THE DAMPER MOTOR .
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING WINDSHIELD PANEL COVER .
- Refer to REMOVING THE CENTER COWL UPPER PART .
- Refer to REMOVING THE CENTER FIREWALL LOWERING PART .
- Refer to RELEASING THE CONTROL UNIT HOLDER .
- Refer to DISCONNECTING REFRIGERANT LINE ON THE CONNECTING PIECE .
- Refer to RELEASING THE COOLANT EXPANSION TANK OF HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING THE REFRIGERANT LINE FROM THE AIR CONDITIONING CONDENSER .
- Refer to DISCONNECTING THE REFRIGERANT LINE FROM THE EXPANSION VALVE .
- Refer to REMOVING EXPANSION VALVE .
- Refer to ADJUSTING THE STEERING COLUMN POSITION .
- Refer to REMOVING THE TRIM FOR THE HEAD-UP DISPLAY .
- Refer to REMOVING CUP HOLDER .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT TRIM .
- Refer to REMOVING THE CENTER CONSOLE TRIM .
- Refer to REMOVING THE DECORATIVE TRIM ON THE CENTER CONSOLE ON THE LEFT AND RIGHT .
- Refer to REMOVING THE WIRELESS CHARGING STORAGE .
- Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .
- Refer to REMOVING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
- Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
- Refer to REMOVING THE CENTER CONSOLE .
- Refer to REMOVING THE SIDE PANEL ON THE LEFT DASHBOARD .
- Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
- Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
- Refer to REMOVING LEFT FOLD-OUT COMPARTMENT .
- Refer to REMOVING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
- Refer to REMOVING RIGHT FOOTWELL TRIM .
- Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
- Refer to REMOVING AIRBAG UNIT .
- Refer to REMOVING AIRBAG UNIT (M SPORT STEERING WHEEL) .
- Refer to REMOVING THE SPORTS STEERING WHEEL .
- Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to REMOVING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to REMOVING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to REMOVING THE INSTRUMENT CLUSTER (KOMBI) .
- Refer to REMOVING THE AUDIO CONTROL UNIT .
- Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to REMOVING THE SPEAKER HOLDER ON THE DASHBOARD .
- Refer to REMOVING THE DASHBOARD TRIM .
- Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE RIGHT-HAND A-PILLAR .
- Refer to REMOVING LEFT AIR DUCT .
- Refer to REMOVING THE HEAD-UP DISPLAY .
- Refer to REMOVING THE SUPPORT FOR THE DASHBOARD .
- Refer to REMOVING THE HEATING AND AIR-CONDITIONING UNIT .
- Refer to REMOVING THE COOLANT PIPE BELOW .
- Refer to REMOVING FRONT LEFT MIXED AIR FLAP MOTOR (M23A) .
- Refer to REMOVING REAR BLENDER FLAP MOTOR (M23B) .
- Refer to REMOVING THE KINEMATICS AT THE BOTTOM LEFT .
- Refer to REMOVING TOPPING COOLANT PIPE .

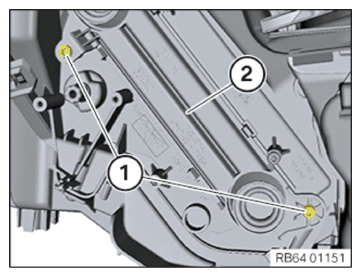

- Loosen screws (1) .
- Remove heat exchanger (2) .
