Remove rear blender flap motor (M23b)
NOTE:
TECHNICAL INFORMATION
The controller drive must be readdressed after replacement.
Addressing can only be carried out with the diagnosis system.
The controller drive must be readdressed after replacement.
Addressing can only be carried out with the diagnosis system.
Preliminary work
- Refer to ENTER THE INSTALLATION POSITION OF THE DAMPER MOTOR .
- Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
- Refer to VEHICLES WITH AIRBAG MODULE: REMOVING KNEE AIRBAG .
- Refer to REMOVING LEFT AIR DUCT .

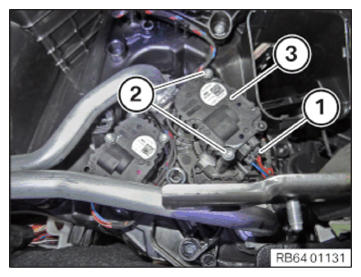

- Disconnect plug connection (1).
- Loosen screws (2).
- Remove the rear mixed air flap motor (3).
