General Electrical System -- Repair (G42)
>>
61 31 Switches
>>
61 31 251 Remove and install audio operating facility
>>
Remove the audio control unit
Remove the audio control unit

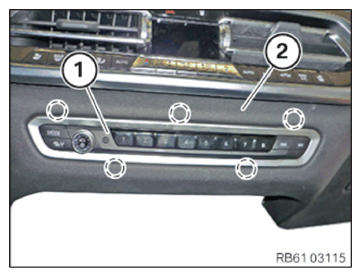

Unclip the audio control unit (1) with the special tool
0 496 571 (00 9 327)
at the marked points from the dashboard (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Disconnect the plug connections (1) and remove the audio control unit (2).
Courtesy of BMW OF NORTH AMERICA, INC.
