Remove expansion valve
CAUTION:
Refrigerant circuit under high pressure.
Injury hazard!
Injury hazard!
- Note and follow safety instructions on containers.
- Avoid contact with refrigerant; wear safety goggles and hand protection.
- For additional information see: INSTRUCTIONS FOR HANDLING R1234YF REFRIGERANT , or SAFETY INSTRUCTIONS FOR HANDLING TETRAFLUORETHANE REFRIGERANT R134A , and NOTES FOR REPAIR WORK ON AIR CONDITIONING
Preliminary work
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING WINDSHIELD PANEL COVER .
- Refer to REMOVING THE CENTER COWL UPPER PART .
- Refer to REMOVING THE CENTER FIREWALL LOWERING PART .
- Refer to RELEASING THE CONTROL UNIT HOLDER .
- Refer to DISCONNECTING REFRIGERANT LINE ON THE CONNECTING PIECE .
- Refer to RELEASING THE COOLANT EXPANSION TANK OF HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING THE REFRIGERANT LINE FROM THE AIR CONDITIONING CONDENSER .
- Refer to DISCONNECTING THE REFRIGERANT LINE FROM THE EXPANSION VALVE .

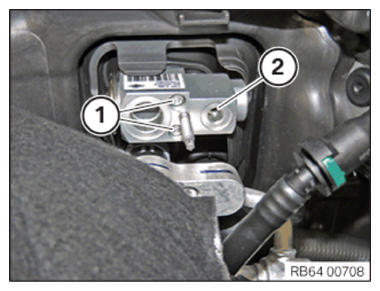

- Loosen screws (1) .
- Remove the expansion valve (2) .
