Installing the headrest guide
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

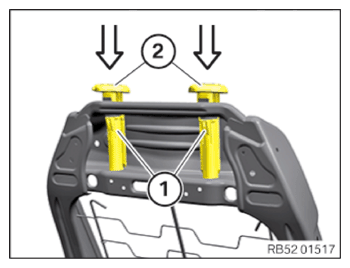

- Correctly position the headrest guides (2)
and install in the direction of the arrow.
The head restraint guides (2) are marked at the top against incorrect assembly with an arrow in the direction of travel.
- The detents (1)
must engage audibly.
Follow-up work
- Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION .
- Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
- Refer to INSTALLING OUTER COVER ON FRONT SEAT .
- Refer to INSTALLING THE HEAD RESTRAINT .
- Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
- Refer to AFTER CONTINUING WORK ON THE FRONT SEAT: DISCONNECTING THE FRONT SEAT FROM THE WIRING HARNESS OF THE VEHICLE AND REMOVING IT FROM THE UNIVERSAL SEAT MOUNT .
- Refer to INSTALLING DRIVER'S SEAT .
