Installing the head restraint

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

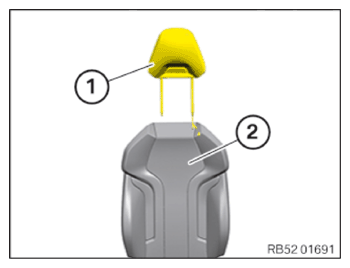

Carefully guide the head restraint with cable (1) into the front seat (2).

G15339339

Courtesy of BMW OF NORTH AMERICA, INC.

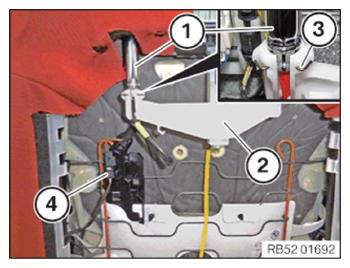

Clip in the head restraint (1) into the drive (2). The clamps (3) must engage noticeably.
Check the correct fit of the head restraint (1) in the clamps (3).
Connect and lock the plug connection (4) and clip into the cable bracket.

G15339340

Courtesy of BMW OF NORTH AMERICA, INC.

Check

Check the correct locking of the head restraint by means of a pull-off test.
Pull the head restraint upwards by applying hand force.

Result

« Head restraint cannot be detached.

Measure

Continue with the installation.

Follow-up work

Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION .
Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
