Installing the rear panel on the front seat backrest

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

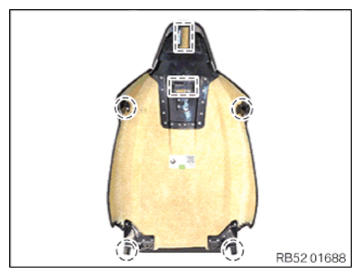

Check the guides and detents in the marked areas for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

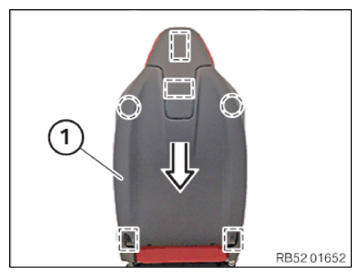

Correctly position the rear panel on the front seat backrest (1) and clip in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

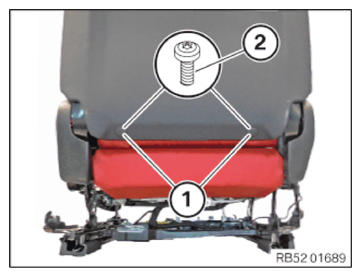

Correctly position and tighten the screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Rear panel to rear seat backrest
Screw	tightening torque	3 Nm

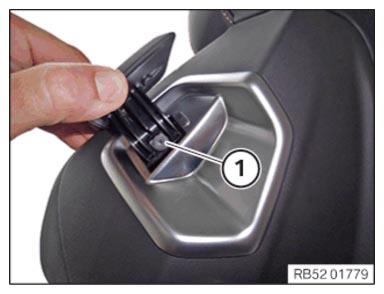

Correctly position and clip in the cover caps (1).

Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Release handle to backrest frame
Screw	tightening torque	2.7 Nm
