Install outer cover on front seat
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

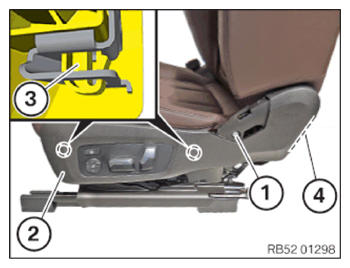

- Check the detents (1) for damage. If necessary, replace the cover (2).
- Connect the connector (1) and clip into the cable bracket if applicable.
- Insert the cover panel (2) in the area (4) and position.
- Engage cover panel (2) at the detents (3).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Seat trim to seat frame | ||
|---|---|---|
| Sheet metal screw | tightening torque | 2.5 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Outer seat trim to seat frame | ||
|---|---|---|
| Screw | Tightening torque | 3.5 Nm |

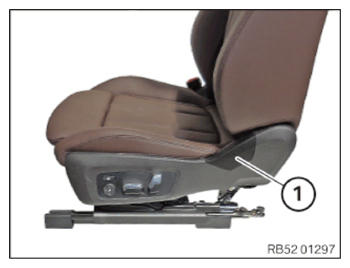

- Clip in the cover (1).
