Remove adapter
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly. Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING EXHAUST SYSTEM .
- Refer to REMOVING THE TANK COVER .
- Refer to REMOVING THE LEFT THRUST FIELD .
- Refer to REMOVING THE REAR HEAT SHIELD .
- Refer to RELEASING THE PROP SHAFT FROM THE REAR AXLE DIFFERENTIAL .
- Refer to PREPARING THE SPECIAL TOOL .
- Release nut (1).
- Release ground cable (2) from the rear axle differential.

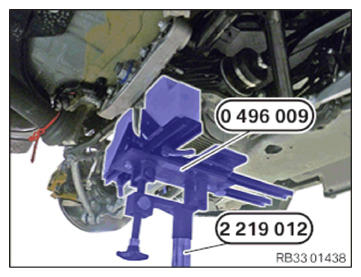

- Raise special tool 0 496 009 (33 5 200) using special tool 2 219 012 and support the rear axle differential.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

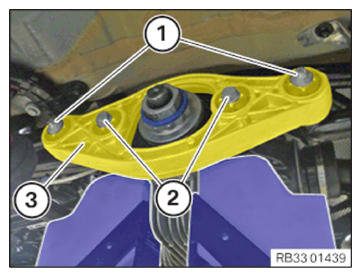

- Release screws (1) and (2).
- Remove adapter (3).
