Installing the spring strut support bearing

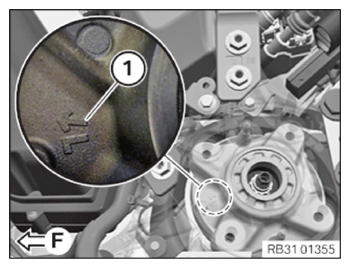

• Note the designation (1) on the spring strut support bearing.

  - L = left

  - R = right

  (F) = driving direction

Courtesy of BMW OF NORTH AMERICA, INC.

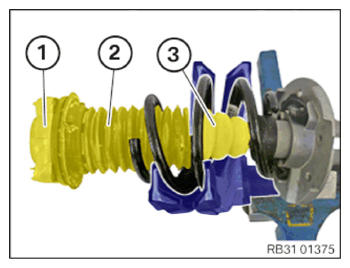

• Slide the spring strut support bearing (1) with the protective tube (2) and the auxiliary damper (3) onto the piston rod of the shock absorber.

Courtesy of BMW OF NORTH AMERICA, INC.

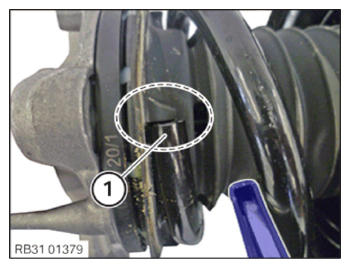

• Align the spring strut support bearing with the protective tube for the upper coil spring end (1) up to the stop.

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace nut (1).

  Parts:  Nut

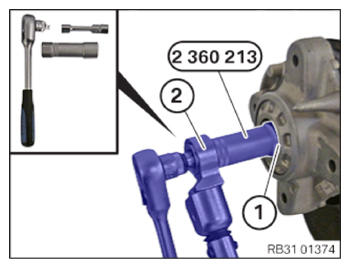

• Tighten the nut (1) on the spring strut support bearing with the special tool 2 360 213  and the standard tool (2). Counter support at the shock absorber (SW10) while doing so.

Courtesy of BMW OF NORTH AMERICA, INC.

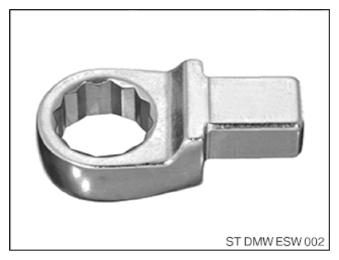

Standard tool: Ring insert tool for double hexagon head

Ring insertion tool for external double hexagon

Ring insertion tool for external double hexagon

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to RELIEVING TENSIONING ON COIL SPRING .
• Refer to INSTALLING THE SWIVEL BEARING .
• Refer to INSTALLING THE SPRING STRUT .
• Refer to FASTENING THE ANTI-ROLL BAR LINK TO THE SPRING STRUT .
• Refer to INSTALLING FRONT BRAKE DISK .
• Refer to FASTENING THE WHEEL SPEED SENSOR ON SWIVEL BEARING .
• Refer to FASTENING FRONT BRAKE CALIPER .
• Refer to ATTACHING THE WISHBONE, TENSION STRUT AND TIE ROD END ON THE SWIVEL BEARING .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
• Refer to INSTALLING THE SIDE HOOD SEAL .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT OR RIGHT .
• Refer to PERFORMING CHASSIS ALIGNMENT CHECK .
