Fastening front brake caliper

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

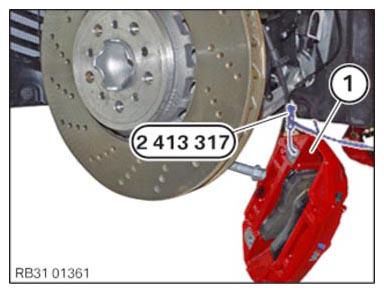

Release the special tool 2 413 317 from the brake caliper (1) and remove it.
Do not hang the brake caliper (1) from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

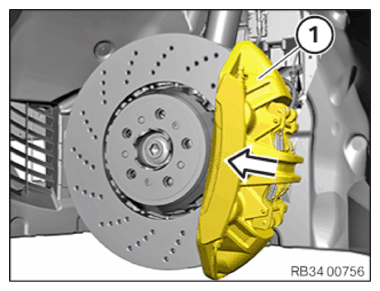

Position the brake caliper (1) in the arrow direction. Do not twist the brake hose in the process.

Courtesy of BMW OF NORTH AMERICA, INC.

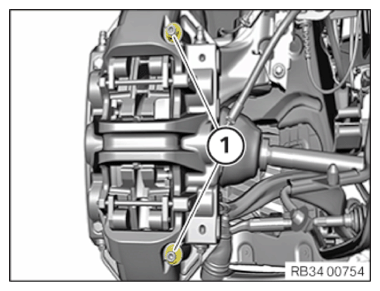

Replace nuts (1) .
Parts: Nuts

Tighten nuts (1) .

TIGHTENING TORQUE SPECIFICATIONS

Brake caliper on stud bolt of the front swivel bearing
M12 Replace nuts.	Tightening torque	95 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

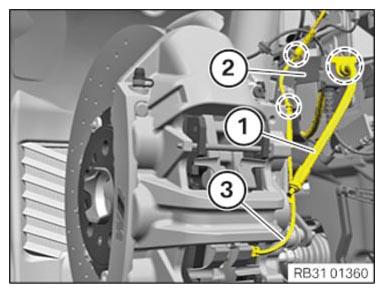

Fasten the brake hose (1) on the holder (2) .
NOTE: Only perform the operation on the left side.
Fasten the cable (3) for the brake pad wear sensor on to the holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
