Fastening the wheel speed sensor on swivel bearing

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

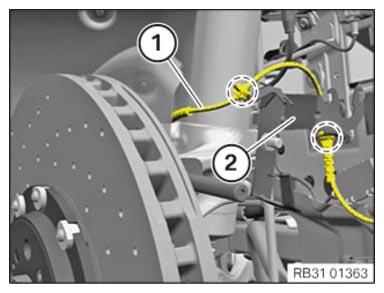

Secure cable (1) of wheel speed sensorto holder (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

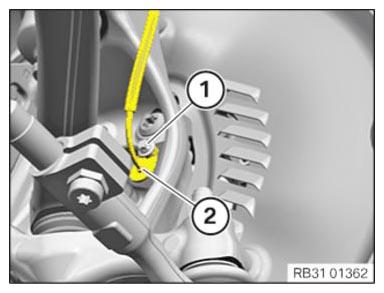

Position the wheel speed sensor (2) on the swivel bearing.
Replace the screw (1) .
Parts: Screw

Tighten down screw (1) .

TIGHTENING TORQUE SPECIFICATIONS

Wheel RPM sensor to swivel bearing
M6 Replace screw.	Tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
