Relieving tension on coil spring

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

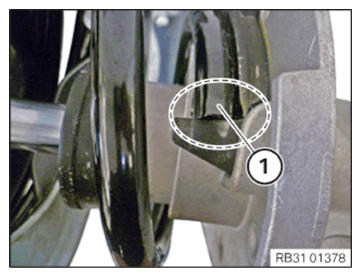

The upper coil spring end (1) must be in contact with the spring pad when the coil spring is released.

Courtesy of BMW OF NORTH AMERICA, INC.

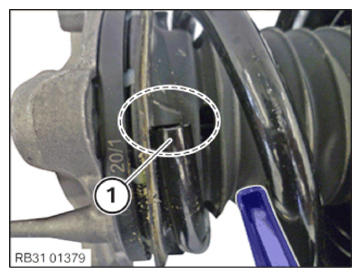

The lower coil spring end (1) must be in contact with the spring pad when the coil spring is released.

Courtesy of BMW OF NORTH AMERICA, INC.

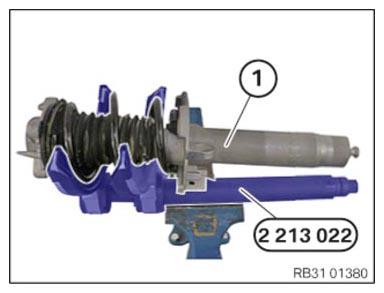

Release the coil spring using special tool 2 213 022 (31 3 340) . Check the position of the coil spring end s and correct if necessary.
Remove the spring strut (1) from the special tool 2 213 022 (31 3 340) .

Courtesy of BMW OF NORTH AMERICA, INC.
