Install the spring strut

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

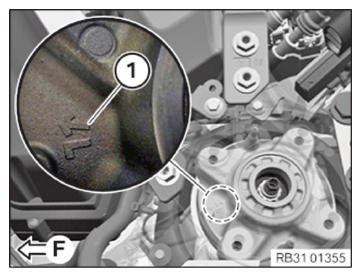

The arrow (1) on the spring strut support bearing must point in the driving direction (F) during installation.
- L = left
- R = right
Courtesy of BMW OF NORTH AMERICA, INC.

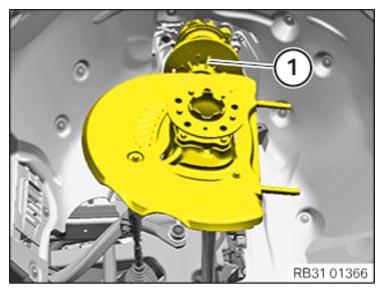

Position the spring strut (1) in the wheel well.

Courtesy of BMW OF NORTH AMERICA, INC.

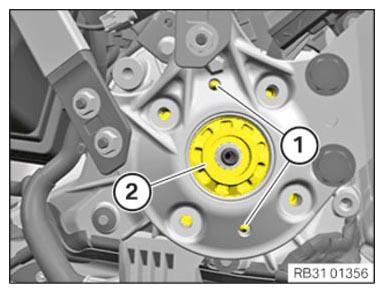

Observe the correct positioning of the tappet (1) of the spring strut support bearing (2) on the shock tower.

Courtesy of BMW OF NORTH AMERICA, INC.

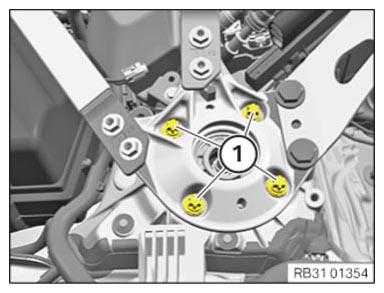

Replace screws (1).
Parts: Screws

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Spring strut support bearing to body
M8 Replace screws.	Tightening torque	28 Nm
	Angle of rotation	120°

Courtesy of BMW OF NORTH AMERICA, INC.

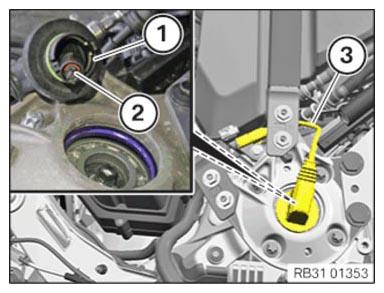

Insert the connector (2).
Mount the rubber grommet with the retaining ring (1) of the adapter cable (3).

Courtesy of BMW OF NORTH AMERICA, INC.

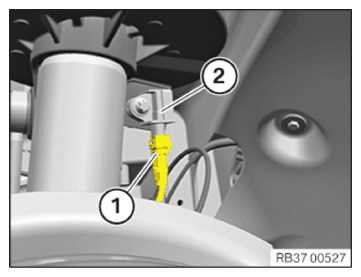

Connect the connector (1) to the vertical acceleration sensor (2) and lock it.
