Raising the front subframe
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

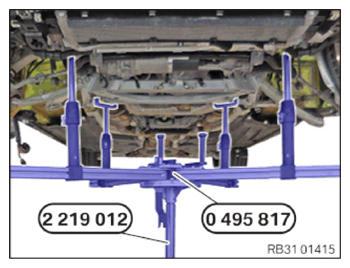

- Lift the front subframe using special tools 2 219 012 and 0 495 817 (31 5 251) and position it on the body.

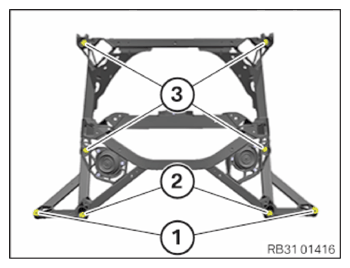

- Replace screws (1)
to (3)
.
Parts: Screws
- Tighten the screws (3)
.TIGHTENING TORQUE SPECIFICATIONS
Front subframe on front/center of body M12 Replace screws. Tightening torque 108 Nm - Tighten the screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Front axle carrier to body, rear M14 Replace screws. Tightening torque 120 Nm - Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Front subframe to outer body at the rear | ||
| M10 Replace screws. | Tightening torque Angle of rotation |
56 Nm 90° |
NOTE:
Perform the steps on the left and right side.

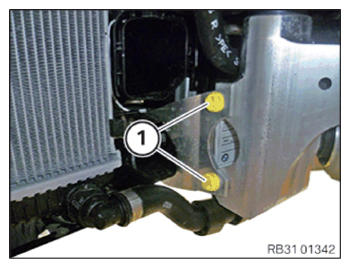

- Position the adapter on the front subframe.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Adapter, front axle support to front axle support M8x70 Tightening torque 19 Nm - Lower the special tool 0 495 817 (31 5 251) with the special tool 2 219 012 and place it to the side.
Follow-up work
- Refer to ATTACHING THE REINFORCEMENT STRUT TO THE FRONT SUBFRAME .
- Refer to SECURING THE COOLANT LINE TO THE FRONT SUBFRAME .
- Refer to SECURING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT TO THE ANTI-ROLL BAR .
- Refer to ATTACHING THE LINE CONNECTION OF THE RIDE HEIGHT SENSOR .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT SUBFRAME .
- Refer to SECURING THE UNIVERSAL JOINT TO THE STEERING GEAR .
- Refer to INSTALLING THE LEFT FRONT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
- Refer to INSTALLING COVERS AT FRONT BOTTOM ON LEFT AN RIGHT SIDES .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE FRONT SPOILER .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to TAKING ENGINE OUT OF INSTALLATION ORIENTATION .
