Removing controller drive for indirect ventilation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
The controller drive must be readdressed after replacement.
Addressing can only be carried out with the diagnosis system.

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE CONTROL PANEL OF THE REAR PASSENGER COMPARTMENT AIR CONDITIONING (INTEGRATED AUTOMATIC CLIMATE CONTROL WITH 4-ZONE CONTROL) .
Refer to REMOVING THE REAR VENTILATION GRILLE .
Refer to REMOVING THE VENTILATION GRILLE IN THE REAR (AIR CONDITIONING SYSTEM WITH 4-ZONE CONTROL) .
Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
Refer to REMOVING THE CENTER ARMREST .
Refer to REMOVING THE FRONT STORAGE COMPARTMENT TRIM .
Refer to REMOVING THE CENTER CONSOLE TRIM .
Refer to REMOVING CUPHOLDER .
Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
Refer to REMOVING FOOTWELL TRIM PANEL ON THE RIGHT .
Refer to REMOVING THE CENTER CONSOLE .
Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
Refer to REMOVING THE RADIO OPERATING UNIT AND THE AIR CONDITIONING CONTROL PANEL .
Refer to REMOVING HEADUNIT HIGH (HU-H) .
Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
Refer to REMOVING THE MID-RANGE SPEAKER FROM THE DASHBOARD .
Refer to REMOVING BOTH INNER FRONT DOOR SILL COVER STRIPS .
Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE RIGHT-HAND A-PILLAR .
Refer to REMOVING A-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
Refer to REMOVING THE SIDE PANEL ON THE LEFT DASHBOARD .
Refer to REMOVING THE LIGHT OPERATING UNIT .
Refer to REMOVING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to REMOVING LEFT FOLD-OUT COMPARTMENT .
Refer to REMOVING AIRBAG UNIT OF THE M SPORTS STEERING WHEEL .
Refer to REMOVING AIRBAG UNIT .
Refer to REMOVING STEERING WHEEL .
Refer to REMOVING STEERING WHEEL .
Refer to REMOVING LOWERING PART OF STEERING COLUMN SHROUD .
Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
Refer to REMOVING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
Refer to REMOVING THE INSTRUMENT CLUSTER (KOMBI) .
Refer to REMOVING INSTRUMENT PANEL TRIM .

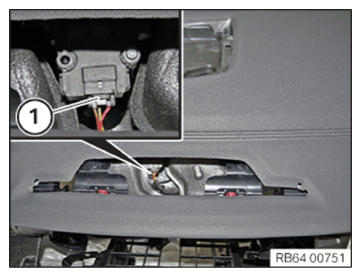

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

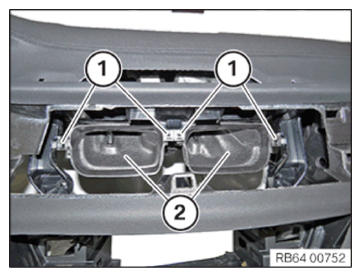

Unlock detents (1) and push the air ducts (2) down.

Courtesy of BMW OF NORTH AMERICA, INC.

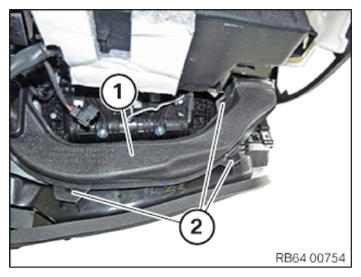

Loosen air duct (1) at mountings (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

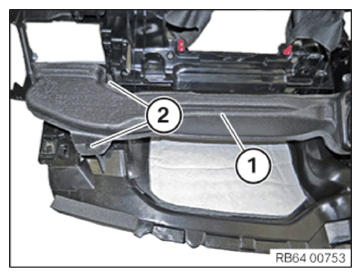

Loosen air duct (1) at mountings (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

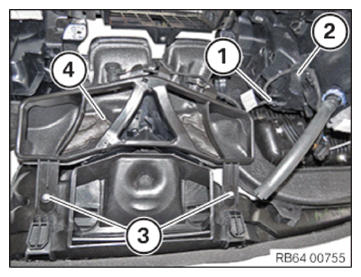

Loosen the cable clip (1) .
Loosen adhesive tape (2) .
Loosen screws (3) and remove air duct (4) from dashboard.

Courtesy of BMW OF NORTH AMERICA, INC.

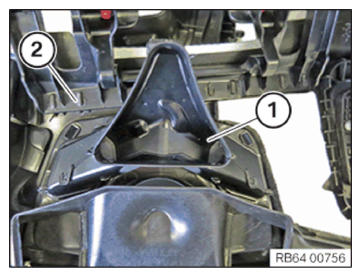

Disengage air duct (1) from dashboard (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

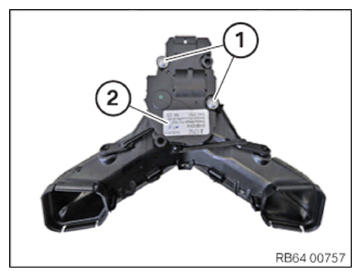

Loosen the screws (1) and remove the controller drive (2) .
