Remove airbag unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Damage to the steering wheel.
Incorrect handling of the tool may damage the steering wheel.
Damage to the steering wheel.
Incorrect handling of the tool may damage the steering wheel.
- Make sure the position (angle and inclination) of the tool is correct.
- When unlocking, do not use "levering" action. Instead, press in the Torx screwdriver toward the center of steering wheel only.

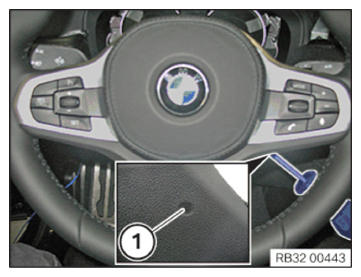

- Feel the back of the steering wheel to locate the pre-bore (1).
- Insert the Torx screwdriver T27 obliquely upwards into the hidden opening (1) on the rear of the steering wheel until a springy resistance is felt.NOTE: To provide a better overview: Schematic diagram with airbag unit removed.

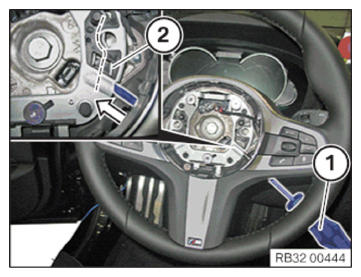

- Press the Torx screwdriver T27 (1) straight in the direction of the steering wheel center to unlock the wire spring (2) or unlock the airbag unit.

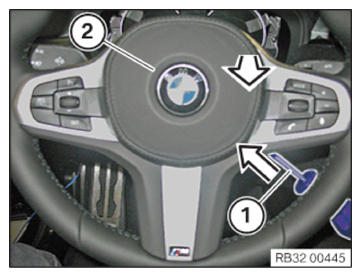

- Push the Torx screwdriver T27 (1) straight into the center of the steering wheel and lift the airbag unit.
- Repeat procedure on left side and carefully remove airbag unit in the direction of the arrow.

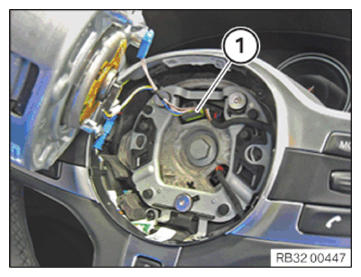

- Unlock and disconnect the plug connection (1) and remove the airbag unit.
