Replacing coolant radiator
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to SUCTIONING THE AIR CONDITIONING .
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to RELEASING THE RIGHT FRONT-END STRUT .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING FAN COWL WITH ELECTRIC MOTOR .
- Refer to PARTIAL INSTALLATION OF ENGINE OIL COOLER .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to REMOVING FRONT RIGHT WHEEL .
- Refer to REMOVING THE FRONT RIGHT LOWER WHEEL ARCH COVER .
- Refer to DRAINING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING THE COVER OF THE COOLING MODULE .
- Refer to DISCONNECTING REFRIGERANT LINES .
- Loosening electric coolant pump of returning line from holder.
- Unlock retaining lug (1)
- Unscrew the electric coolant pump (2) counter clockwise and put it aside.
- Refer to RELEASING ELECTRIC COOLANT PUMP OF FEED LINE FROM HOLDER .
- Refer to DISCONNECTING THE TRANSMISSION OIL COOLER LINE .
- Refer to REMOVING THE COOLANT RADIATOR WITH THE AIR CONDITIONING CONDENSER .
Remove A/C condenser

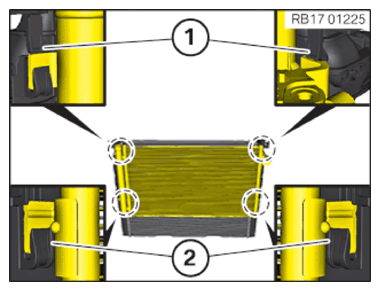

- Unlock the detents (1) .
- Feed out and remove the air conditioning condenser from the guides (2) toward the top.
- Unlock the coolant temperature sensor (2) on the former coolant radiator at the detents (1) and remove it.
- Check sealing ring (1) for damage and, if necessary, replace it.
- Replace coolant radiator.
Parts: Radiator
- Install the coolant temperature sensor (2) in the coolant radiator at the detents (1) and lock in place.
Install air conditioning condenser
- Position the air conditioning condenser.
- Feed the air conditioning condenser upwards into the guides (2) .
- Lock the detents (1) .
Follow-up work
- Refer to INSTALLING RADIATOR WITH THE AIR CONDITIONING CONDENSER .
- Refer to CONNECTING THE TRANSMISSION OIL COOLER LINE .
- Refer to FASTENING ELECTRIC COOLANT PUMP OF FEED LINE TO HOLDER .
- Fastening electric coolant pump of returning line to holder.

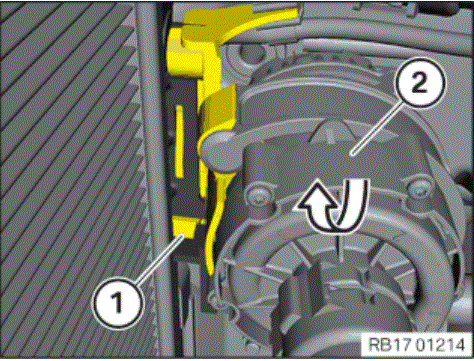

- Position electric coolant pump (2).
- Turn electric coolant pump (2) clockwise and engage at snap-in lug (1).
- Refer to CONNECTING REFRIGERANT LINES .
- Refer to INSTALLING THE COOLING MODULE COVER .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
- Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to ENGINE OIL COOLER PARTIAL INSTALLATION .
- Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING FRONT CROSS CONNECTION .
- Refer to TIGHTENING THE LEFT FRONT-END STRUT .
- Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Installing the cover panel of the master DME control unit.
- Position the cover of the master DME control unit (1)
- Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
- Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
- Refer to EVACUATING AND CHARGE CONDITIONING .
