Installing the cooling module cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

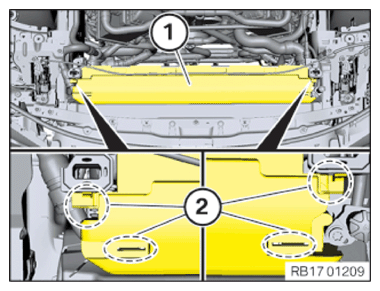

Insert the cover (1) of the cooling module and engage it with the detents (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview the removed condition is shown here.

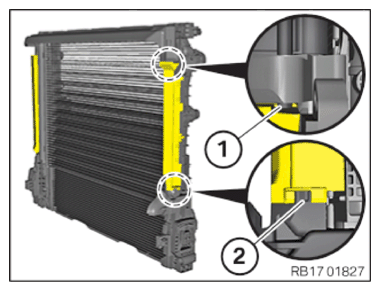

The cooling module guiding element, right, must be centered on attachment points (1) and (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview the removed condition is shown here.

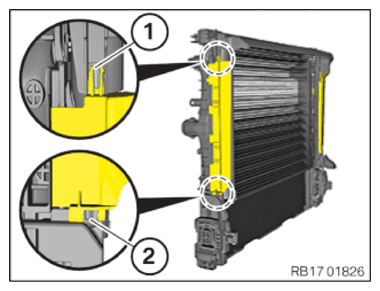

The cooling module guiding element, left, must be centered on attachment points (1) and (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
