Connecting refrigerant lines
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

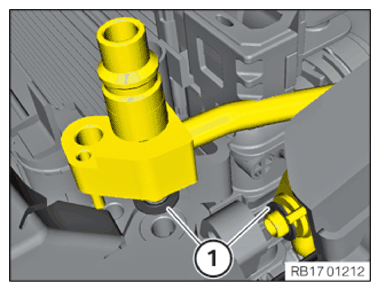

- Replace the sealing rings (1)
.
Parts:
Sealing ring
 Courtesy of BMW OF NORTH AMERICA, INC.
|

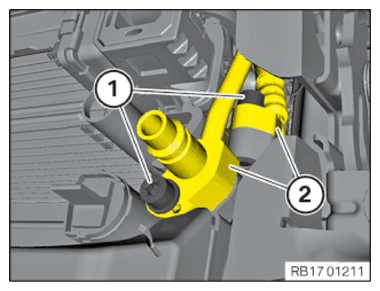

- Position refrigerant lines (2)
.
- Tighten down screws (1)
.
TIGHTENING TORQUES SPECIFICATION
| Refrigerant line to air conditioning condenser/connecting piece |
| M8 |
tightening torque |
19 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
