Engine oil cooler partial installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

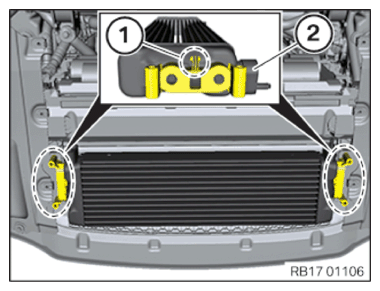

- Position the engine oil cooler (2) with the crash pads.
- Snap the engine oil cooler (2)
upwards onto the retaining lugs (1)
on the crash pad.
- Secure the engine oil cooler (2) from falling down.

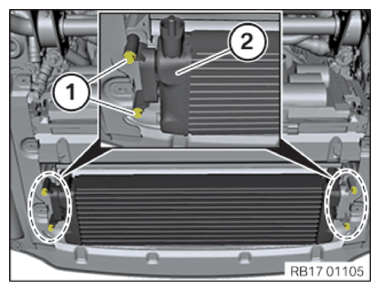

- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| upstream engine oil cooler | ||
| M6x45 screw | Tightening torque | 8 Nm |
